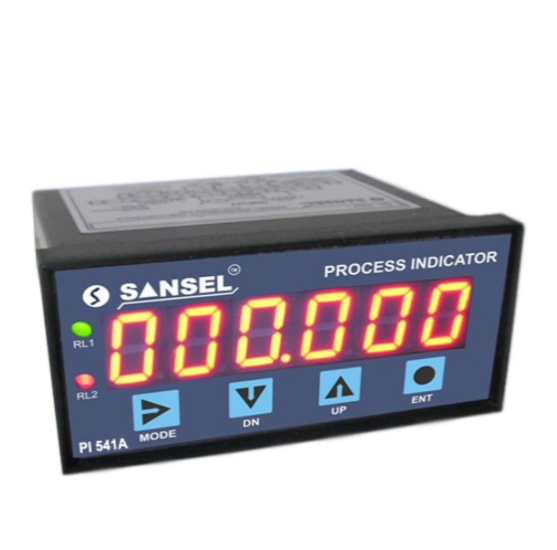

Display: 5 ½ Digit 7 segment RED LED
Analog inputs: 0~20 mA, 0~70 mV, -10~10VDC, 0~4000U (H & L Limit Programmable)
Temperature inputs: RTD-PT 100, Thermocouple - J, K, R, S, T, B, N, E
Analog display range: - 199999~199999 (H & L Limit Programmable)
Temperature range: RTD- PT 100 (-199.99~850°C/ -327.8~1562°F)
(H & L Limit Programmable)
RTD-PT 1000 (-50.0~400.0°C/ -58.0~752.0°F)
TC-J (- 200~1200°C/ -328~2192°F)
TC-K (- 200~1372°C/ -327.8~2501.6°F)
TC-R (-40~1768°C/ -40~3214.4°F)
TC-S (-40~1768°C/ -40~3214.4°F)
TC-T (-200~400°C/ -328~752°F)
TC-B (300~1820°C/ 572~3308°F)
TC-N (-200~1300°C/ -327.8~2372°F)
TC-E (-200~1000°C/ -327.8~1832°F)
Unit selection: °C/°F (for RTD & TC inputs)
Analog resolution: 0.0001/0.001/0.01/0.1/1 (Selectable)
Temperature resolution: 0.01(for RTD-PT 100 input(°C) only)/0.1/1°C/°F
Accuracy: ±0.1% of FS
PC Communication (optional): RS 485 (2 wire)
Sensor supply (external): 24 VDC ±10% at 100mA
Operating environment: 0~50ºC/ 5~95%RH Non Condensing
Power supply: 90~270 VAC/DC; 50/60Hz
Overall dimension: 48(H)x96(W)x110(D)mm
Cut out dimension: 44(H)x90(W)mm
Weight: ≈250 grams
