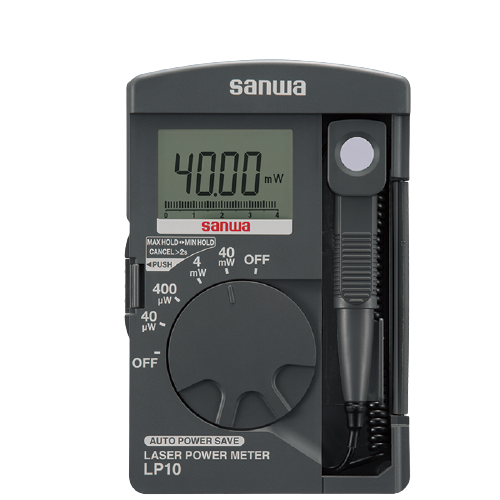

Light sensor element: Si photodiode (Light sensor surface diameter Ø9mm) with diffusion sheet
Measurable wavelength range: 400 nm to 1100 nm
Directly-readable wavelength: 633 nm(He-Ne laser)
Other wavelengths should be converted using typical correction factor
Display:
- Digital display: 4039 full scale
- Bar graph display: 41-segment display
Sampling rate:
- Digital display: Approx. 3 times/sec.
- Bar graph display: Approx. 30 times/sec.
Ranges:
- 40 μW range: 0.01 μW to 40.39 μW
- 400 μW range: 0.1 μW to 403.9 μW
- 4 mW range: 0.001 mW to 4.039 mW
- 40 mW range: 0.01 mW to 40.39 mW
Measured object: CW laser, the modulated laser connot be measured accurately
Power supply: LR44 1.5V×2
Size/Mass: 117(H)×76(W)×18(D)mm / approx. 120 grams
Light sensor probe: 84(H)×16(W)×10(D) mm
Sensor cord length: Aprox. 0.5 m when extended
Accessories: Instruction manual x 1
