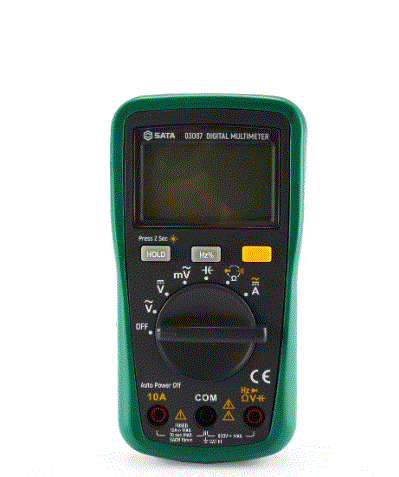

SATA 03007 Mini Digital Multimeter with Frequency Measurement (40MΩ, 100µF)

Security Level: CAT IV 600V

Maximum reading value: 3999

Automatic/manual range: automatic

DC voltage range±basic accuracy: 4V±(0.5%+5) / 40V±(0.5%+5) / 400V±(0.5%+5) / 600V±(1.0%+5)

AC voltage range±basic accuracy: 400mV±(1.0%+5) / 4V±(0.8%+5) / 40V±(1.0%+5) / 400V±(1.0%+5) / 600V±(1.0%+5)

DC current range±basic accuracy: 4A±(1.0%+7) / 10A±(1.5%+7)

AC current range±basic accuracy: 4A±(1.5%+10) / 10A±(2.5%+10)

Resistance range±basic accuracy: 400Ω±(1.0%+5) / 4KΩ±(0.5%+5) / 40KΩ±(0.5%+5) / 400KΩ±(0.5%+5) / 4MΩ±(1.5%+5) / 40MΩ±(3.0% +10)

Capacitance range ± basic accuracy: 51.2nF±(3.5%+20) / 51.2nF±(2.5%+5) / 5.12µF±(5.0%+5) / 51.2µF±(5.0%+5) / 100µF±(5.0%+5)

Frequency range±basic accuracy: 5Hz-500KHz±(1.0%+5) / 5MHz is for reference only

Data retention: Yes

Backlight: Yes

Automatic shut-down: Yes

Power supply: 1.5V AAA battery 2pcs

Size: 150×78×38mm

Weight: 245g (including battery and case)

●High performance, low power consumption and auto-range function

●Main features: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, continuity, diode, backlight

●Sturdy, safe and reliable, full-range overload protection
