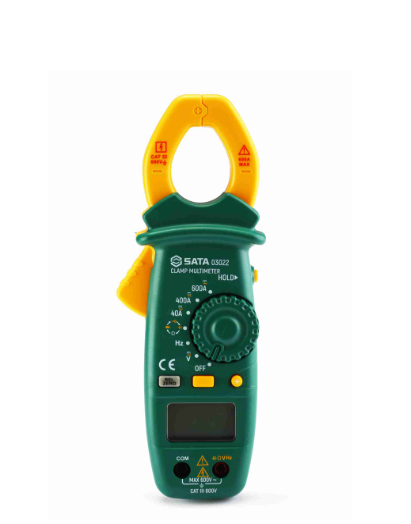

SATA 03022 AC/ DC Clamp Multimeter (600A, 600V)

Security Level: CATⅢ600V

Maximum reading value: 3999

DC voltage:

Range: 400mV / Resolution: 0.1mV / Accuracy: ±(0.8%+5)

Range: 4V / Resolution: 1mV / Accuracy: ±(0.8%+5)

Range: 40V / Resolution: 10mV / Accuracy: ±( 0.8%+5)

Range: 400V / Resolution: 100mV / Accuracy: ±(0.8%+5)

Range: 600V / Resolution: 1V / Accuracy: ±(1.0%+5)

AC voltage

Range: 4V / Resolution: 1mV / Accuracy: ±(0.8%+5)

Range: 40V / Resolution: 10mV / Accuracy: ±(1.2%+5)

Range: 400V / Resolution: 100mV / Accuracy: ±(1.2 %+5)

Range: 600V / Resolution: 1V / Accuracy: ±(1.2%+5)

DC

Range: 40A / Resolution: 0.01A / Accuracy: ±(3.0%+10)

Range: 400A / Resolution: 0.1A / Accuracy: ±(2.5%+6)

Range: 600A / Resolution: 1A / Accuracy: ± (3.0%+6)

Alternating current

Range: 40A / Resolution: 0.01A / Accuracy: ±(2.5%+6)

Range: 400A / Resolution: 0.1A / Accuracy: ±(2.5%+6)

Range: 600A / Resolution: 1A / Accuracy: ± (2.5%+6)

Resistance

Range: 400Ω / Resolution: 0.1Ω / Accuracy: ±(1.0%+5)

Range: 4kΩ / Resolution: 1Ω / Accuracy: ±(1%+5)

Range: 40kΩ / Resolution: 10Ω / Accuracy: ±( 1%+5)

Range: 400kΩ / Resolution: 100Ω / Accuracy: ±(1%+5)

Range: 4MΩ / Resolution: 1KΩ / Accuracy: ±(1.5%+5)

Range: 40MΩ / Resolution: 10KΩ / Accuracy: ±(3.0%+10)

Capacitance (for relative value measurement)

Range: 40nF / Resolution: 10pF / Accuracy: ±(5.0%+5)

Range: 400nF / Resolution: 100pF / Accuracy: ±(5.0%+5)

Range: 4µF / Resolution: 1nF / Accuracy: ±(5.0 %+5)

Range: 40µF / Resolution: 10nF / Accuracy: ±(5.0%+5)

Range: 100µF / Resolution: 100nF / Accuracy: ±(5.0%+5)

Frequency

Range: 9.999Hz / Resolution: 0.001Hz / Accuracy: ±(1.0%+5)

Range: 99.99Hz / Resolution: 0.01Hz / Accuracy: ±(1.0%+5)

Range: 999.9Hz / Resolution: 0.1Hz / Accuracy: ±(1.0%+5)

Range: 9.999kHz / Resolution: 1Hz / Accuracy: ±(1.0%+5)

Range: 99.99kHz / Resolution: 10Hz / Accuracy: ±(1.0%+5)

Range: 200kHz / Resolution: 100Hz / Accuracy: ±(1.0%+5)

Continuity and diode testing

On-off: The buzzer sounds when R<20Ω

Diode: The screen displays the approximate value of the forward voltage drop of the diode, open circuit voltage: about 3V

Power supply: 1.5V AAA battery 2pcs

Size: 202.5×73.5×40mm

Weight: 220g (including battery and case)

●3-3/4-digit LCD, with the maximum reading of 3999

●Main features: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode testing

●A practical measurement tool, with such features as data retention, screen backlight and full-range overload protection
