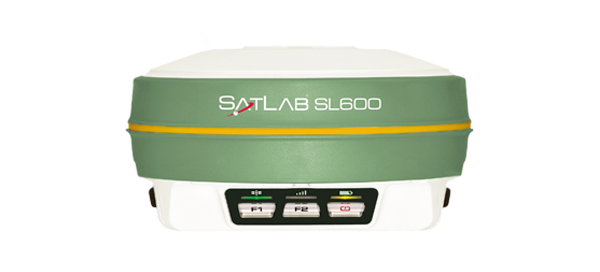

SATLAB SL600 GNSS Receiver

Signal Tracking

- 220 Channels

- GPS : L1 C/A, L2E, L2C

- GLONASS : L1 C/A, L1 P, L2 C/A, L2 P

- BEIDOU : B1, B2

- GALILEO : L1 BOC, E5B

- QZSS : L1 C/A, L1 SAIF, L2C

- SBAS : L1 C/A, (WAAS-EGNOS-MSAS-GAGAN)

I/O Interface

- 2 x RS232 Serial Port

- 2 x DC External Power Input

- 1 x USB

- 1 x Bluetooth, >50 m Range

- 1 x microSD Card Slot

- 1 x SIM Card Slot

- 1 x Speaker

- 3 Push Button Control Panel

- 3 LED Indicator Panel

Communications

- Internal 3.5G UMTS/HSDPA GSM Modem

- Internal Digital UHF Modem

Power

- DC 6-28 V Input

- Dual Battery Comparment

- 10.000 mAh Hot-Swap Li-lon Battery

- Battery Life

24 Hours Static Measurement

18 Hours RTK Rover

15 Hours RTK Base

Accuracy

- RTK : Horizontal 8 mm + 1 ppm, Vertical 15 mm + 1 ppm

- PP : Horizontal 2.5 mm + 1 ppm, Vertical 5 mm + 1 ppm

- RTK Init : < 10 s

- Condence Level : 99.9 %

- DGNSS Position Accuracy: Horizontal 25cm RMS, Vertical

50cm RMS

Environmental

- IP67 Enritonmental Protection

- Waterproof to 2 m Dept

- Shock Resistant Body to 3 m Drop

- Operating Temperature : - 45 °C to +65 °C

- Storage Tempearture : - 55 °C to +85 °C

Physical Properties

- XENOY 5220U Housing

- Size : 182 mm x 92 mm

- Weight : 1.2 kg
