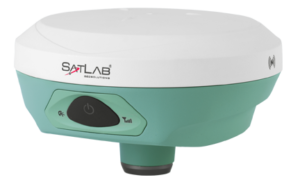

SATLAB SL800 GNSS Receiver

GNSS

Signal Tracking: GPS (L1C/A, L1C, L2C, L2P, L5)

GLONASS¹ (L1C/A, L2C, L2P, L3, L5)

BeiDou² (B1, B2, B3)

Galileo³ (E1, E5AltBOC, E5a, E5b, E6); IRNSS (L5)

QZSS (L1C/A, L1C, L2C, L5, L6); SBAS (L1, L5)

L-Band (Up to 5 Channels) TerraStar®

No. of Channels 555

MEASUREMENT PERFORMANCE

Real-time Kinematic: H: 8mm + 1ppm RMS / V: 15mm + 1ppm RMS

Network RTK: H: 8mm + 0.5ppm RMS / V: 15mm + 0.5ppm RMS

Post Processing Kinematic: H:8mm + 1ppm RMS / V:15mm + 1ppm RMS

High-precision Static: H: 2.5mm + 0.1ppm RMS / V: 3.5mm + 0.4ppm RMS

Static and Fast Static: H: 2.5mm + 0.5ppm RMS / V: 5mm + 0.5ppm RMS

DGPS Position Accuracy: H: 25cm RMS / V: 50cm RMS

SBAS Position Accuracy: H: 50cm RMS / V: 85cm RMS

Code Differential: DGPS/RTCM

Initializing Time: <10s

Initializing Reliability: 99.9%

COMMUNICATIONS

Communication Ports:

USB and RS232 serial port

Bluetooth 4.0, NFC

DC External power input

LED indicator panels

GENERAL Environmental

IP67 environmental protection

Waterproof to 1m (3.28ft) depth

Temporary Submersion

Shock resistant body to 2m (6.5ft) pole drop

Temperature -40°C to 65°C Operating

-40°C to 75°C Storage

Physical Properties Size: 127.5mm x 57mm

Weight: 700g including battery

Power: 6 – 28V DC Input

Battery: 6300 mAh Li-Ion Battery

Battery Life: 9 hours (Static Measurement / RTK Rover)
