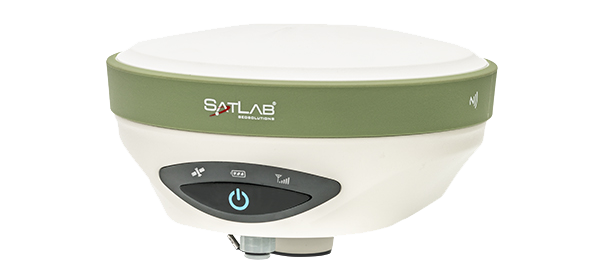

SATLAB SL900 GNSS Receiver (555 channels)

GNSS

Signal Tracking: GPS (L1C/A, L1C, L2C, L2P, L5)

GLONASS¹ (L1C/A, L2C, L2P, L3, L5)

BeiDou² (B1, B2, B3)

Galileo³ (E1, E5AltBOC, E5a, E5b, E6); IRNSS (L5)

QZSS (L1C/A, L1C, L2C, L5, L6); SBAS (L1, L5)

L-Band (Up to 5 Channels) TerraStar®

No. of Channels 555

MEASUREMENT PERFORMANCE

Real-time Kinematic: H: 8mm + 1ppm RMS / V: 15mm + 1ppm RMS

Network RTK: H: 8mm + 0.5ppm RMS / V: 15mm + 0.5ppm RMS

Post Processing Kinematic: H:8mm + 1ppm RMS / V:15mm + 1ppm RMS

High-precision Static: H: 2.5mm + 0.1ppm RMS / V: 3.5mm + 0.4ppm RMS

Static and Fast Static: H: 2.5mm + 0.5ppm RMS / V: 5mm + 0.5ppm RMS

DGPS Position Accuracy: H: 25cm RMS / V: 50cm RMS

SBAS Position Accuracy: H: 50cm RMS / V: 85cm RMS

Code Differential: DGPS/RTCM

Initializing Time: 2-10s

Initializing Reliability: 99.9%

COMMUNICATIONS

Communication Ports: Internal 4G Mobile Network

TDD-LTE/FDD-LTE/WCDMA/GPRS/GSM

Bluetooth: V2.1 + EDR, NFC

Wi-Fi: 2.4G ，802.11b/g/n

Internal Radio: Satel radio for Tx/Rx4

GENERAL Environmental

IP67 environmental protection

Waterproof to 1m (3.28ft) depth

Temporary Submersion

Shock resistant body to 2m (6.5ft) pole drop

Temperature -40°C to 65°C Operating

-40°C to 85°C Storage

Physical Properties Size: 170mm x 95mm

Weight: 1.2kg including battery

Battery: 5,000mAh Lithium-Ion Battery

Battery Life: 10 hours (RTK Rover)
