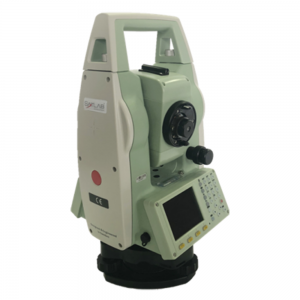

SATLAB SLT5 Total Station (Accuracy: 5”)

ANGLE MEASUREMENT

Minimum Readout

: 1” (0.3 mgon), 5” (1.5 mgon), 10” (3 mgon)

Method: Absolute encoding

Accuracy: 5”

Compensator System: Dual-axis

Compensator Range: ±3’

Compensator Setting Accuracy: 1”

DISTANCE MEASUREMENT WITH REFLECTOR

Single Prism: 3,000m

Three Prisms; 5,000m

Reflective Sheet: 800m

Accuracy: 2mm + 1.5ppm

Measuring Time: 1s

0.8s

Tracking 0.5s

DISTANCE MEASUREMENT WITHOUT REFLECTOR

Range: 800m

Single Prism: > 7,500m

Accuracy: 3mm + 2ppm

Measuring Time: 1.5s

TELESCOPE

Magnification: 30x

Image: Erect

Field of View: 1°20’ (2.4m at 100m)

Min. Focusing Range: 1.5m

Reticle: Illuminated

Effective Diameter of Objective: 40mm/50mm (EDM)

Resolving Power: 3”

Environmental: -20°C to 50°C Operating

-40°C to 70°C Storage

Weight: ≤5.5kg (12lb) including battery

Battery: 7.4VDC / 3000 mAH

Operation: Optimally 18 hours
