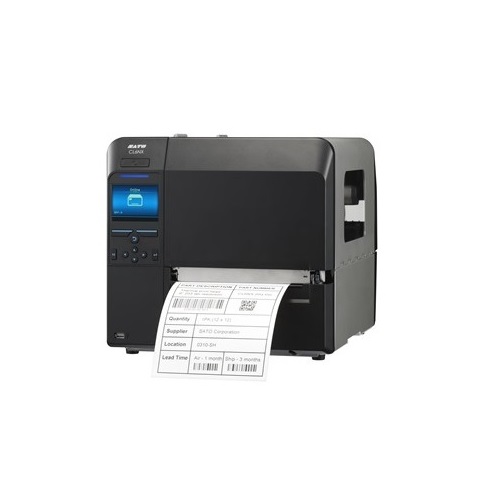

SATO CL6NX 203dpi Label Printer (STD +COMBO/Non BT)

PRINTING SPECIFICATION

Printing Method: Direct Thermal / Thermal Transfer

Print Mode: Continuous, Tear-off, Cutter, Dispenser, Linerless

Print Resolution: 8 dots/mm 203 dpi

Max. Print Speed: 10 ips 254 mm/sec

Max. Print Area:

- Width, mm (inch): 167.5mm (6.5””)

- Length, mm (inch): 2500mm (98.43”)400mm (15.7”) 2500mm (98.43”) 1500mm (59.1”)

Processor: Dual CPU & Dual OS: CPU 1: 2GB ROM, 256MB RAM for Linux OS, CPU 2: 4MB ROM, 64 MB RAM for ITRON OS

Printer Memory: 2GB ROM, 256MB RAM

CONSUMABLE SPECIFICATION

Media Thickness: 0.08 - 0.268mm (0.003” - 0.01”)

Label Size (Without Liner)

- Continuous: Width: 47-177mm 1.27”-6.96”

Length: 16-2500mm 0.63”-98.4”

- Tear-Off/Cutter: Width: 47-177mm 1.27”-6.96”

Length: 17-2500mm 0.67”- 98.4”

- Dispenser: Width: 47-177mm 1.27”-6.96”

Length: 27-397mm 1.06”-15.6”

Ribbon:

- Size: Max. Length: 600m (1969’). 450m (1476’) when ribbon width is 39.5mm

Max. Roll Diameter: 90mm (3.5”),

Ribbon width: 39.5mm (1.55”) to 128mm (5.04”)
