Specification
Features:
- Temperature: user defined temperature correction (factory set to 77°F)
- Specific gravity testing range: 0.0000 – 2.0000
- Indicator: High resolution dot matrix display; specific gravity, temperature
- Measuring time: within 3 Seconds
- Power Supply: : (2) AAA batteries – approx. 90 hours battery life
- Accuracy: +/- 0.001
- Automatically temperature compensated to 77°F (25°C)
- Suction tube: 12”
- Stores 1100 results internally
- LED display
- Time savings: 5 times faster than conventional methods
- Tests lead-acid and Ni-Cad batteries
- CE compliant
- Tests lead-acid and Ni-Cad batteries
- ormation:
+ SBS-2500 Spare Parts Kit Includes: O-ring, sample pump & sample tube/washer
+ SBS-2500 Tube/Wash 12" sample tube/washer
+ SBS-2500 Adaptor RS-232 to USB adaptor
- Ordering Information:
+ SBS-2500 Digital specific gravity tester with downloading capabilities

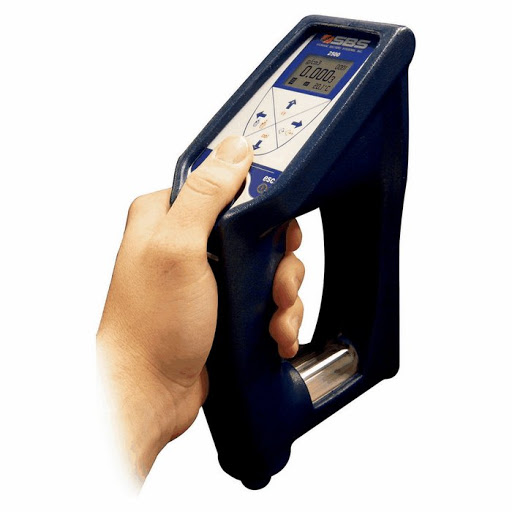

Digital Specific Gravity Tester w/ Downloading Capabilities
The SBS-2500 offers the ability to test both lead-acid and nickel-cadmium batteries within seconds. Our SBS-2500 compares the temperature of the sample fluid with the set value and makes the necessary adjustments automatically with the built-in thermostat.
This unit will allow you to log up to 1,100 individual S.G. & temperature readings that can later be uploaded to a laptop or PC running the included software.
When combined with our SBS-6000 battery diagnostic tester, it provides an all-in-one solution for your battery testing needs.
Easy instructions to follow: immerse the sampling tube, pull the trigger and view your final results.
Ordering Information |
|
| Part No. | Description |
| SBS-2500 | Digital specific gravity tester with downloading capabilities |
Accessory Ordering Information |
|
| Part No. | Description |
| SBS-2500-SPR-PRT-KIT | Spare parts kit includes: O-ring, sample pump, (1) sample tube & washer |
| SBS-2500TUBE/WASH | Sample tube and washer for SBS-2500 |
Specifications |
|
| Method of Detection | Specific gravity; oscillating tube method |
| Temperature | User defined temperature correction |
| Range | 0.0000 – 2.0000 |
| Indicator | High resolution dot matrix display; specific gravity, temperature |
| Measuring time | Within 3 seconds |
| Power supply | (2) AAA batteries |
| Calibration | With dry air or pure water |
| Accuracy | ±0.001 |
| Size | 9"L x 4.5"W x 2.5"H; 12.7 oz. |
| Suction Nozzle | 11.8" x 1/8" dia. |
-
