Resolution: 0.01 mm / 0.0005 inch
Measuring range: 0 – 25 mm / 1 inch
Depth of jaw: 300 mm
Measuring pressure: 2 N
Measuring principle: Self closing
Feeler shape: A/B/C/G/H
Display: LCD 4 digit, 8 mm high
Measuring system: Capacitive
Data output: USB
Weight, net (gross): Approx. 1000 g (1050 g)
Special Features

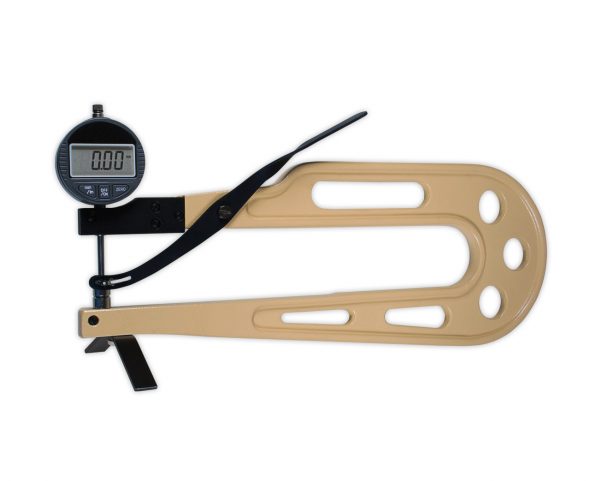

Thickness gauge DMD-830-1-F features an easy to read digital display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force approx 2 N
Opening by lifting device (lever) – self closing thickness gauge DMD-830-1-F
The thickness gauge is equipped with a big foot (Code F) for better operation
Output signal: USB
