Capacity: 0 – 5 N
Resolution (in N): 0.001 N
Measuring Range (in gf; kgf): 0 – 500.0 gf
Measuring Range (in ozf; lbf): 0 – 17.64 ozf
Measuring principle: Bidirectional force sensor with strain gauge
Accuracy: ±0.2 % Full Scale ±1 digit
Measuring units: N, gf (kgf), lbf (ozf)
Display: LCD, 4 digits
Overload capacity: 200 % full scale, Alarm signal at 90 % full scale, Alarm signal and flashing display at 110 % full scale
Display update rate: 8 times/sec
Plug gauge: M6 male thread
Memory: Internal memory for 1000 readings
Sampling rate: 1000 times/sec
Zero adjustment: 10 % full scale
A/D converter: 16 bit
Output signal: USB (8, 1, N, 256000); RS-232 (8, 1, N, 19200)
Temperature range: 0 – 40 °C
Air humidity: 20 – 80 % RH
Low battery indicator: Display flashes
Power supply: Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light, approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery.
Mounting threads for test stand: 4 x M4, Depth 8 mm
Housing material: Die-cast aluminium
Dimensions: 181 x 72 x 32 mm (LxWxH)
Weight, net (gross): Approx. 460 g (1300 g)

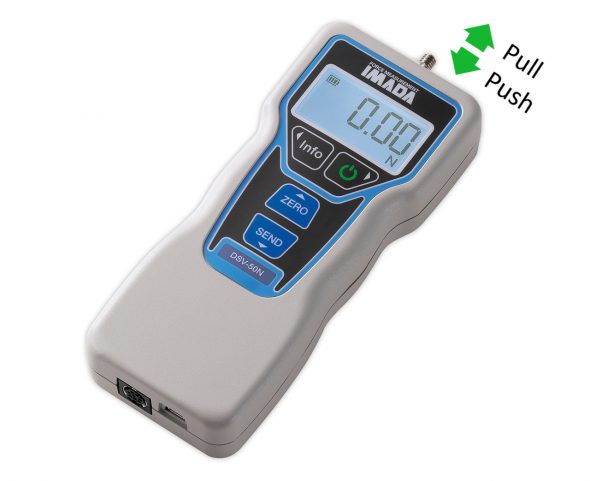

Delivery Includes: Force gauge DSV with carrying case, standard accessories, AC adapter, USB cable, 1 CD-ROM with USB-driver and software “Force Logger”, manufacturers calibration report, operating instruction in German or English as requested
