Resolution: 0.001 mm / 0.00005 inch
Measuring range: 0 – 3 mm / 0 – 0.12 inch
Depth of jaw: 30 mm
Measuring principle: Self closing
Feeler shape: F
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 300 g (350 g)
Special Features

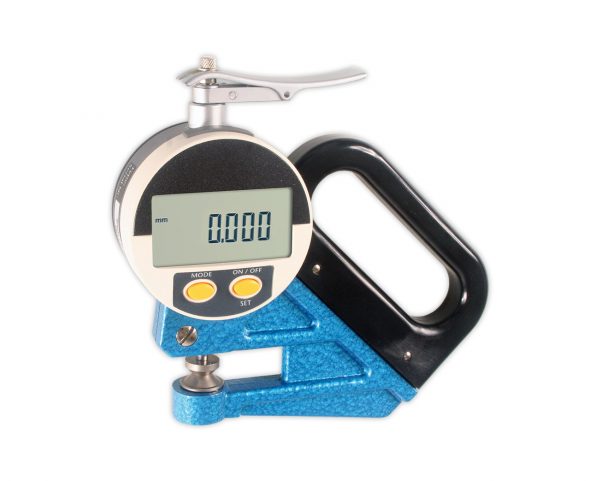

FD-1000-30-3 Thickness gauge features an easy to read digital display along with the high accuracy
The thickness gauge is used for foils and thin materials with a resolution of 0.001 mm
The isolated handle ensures highest accuracy (prevents transfer of the heat from the operator´s hand to the gauge)
The instrument is equiped with a feeler Ø 6.35 mm
Measuring by spring force
Thickness gauge opening by lifting device (lever) – self closing thickness gauge FD-1000-30-3
Output signal:
– USB
– RS 232
