Resolution: 0.01 mm / 0.001 inch
Measuring range: 0 – 12.5 mm / 0 – 0.5 inch
Depth of jaw: 200 mm
Measuring principle: Self closing
Feeler shape: A/B/C/D/E
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 1100 g (1150 g)
Special Features

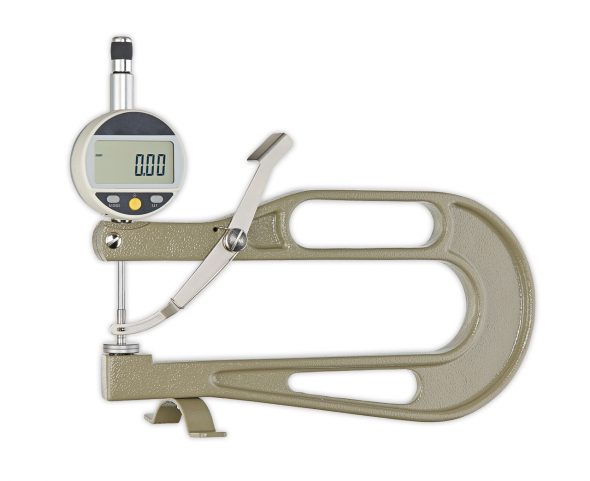

Thickness gauge JD-200 features an easy to read digital display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force
Opening by lifting device (lever) – self closing thickness gauge JD-200
Output signals:
– USB
– RS-232
Includes swing-out foot for on-table operation
