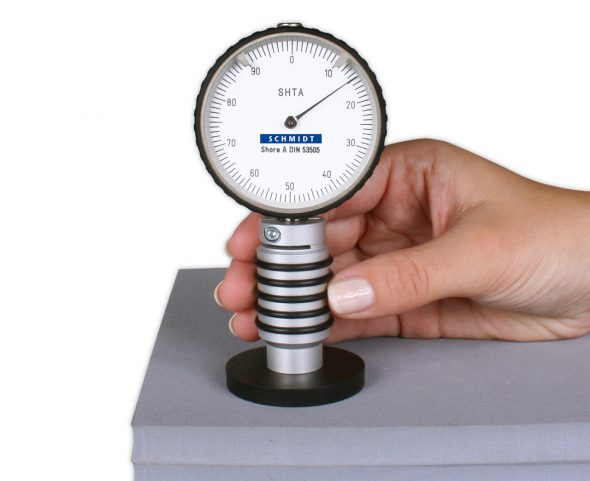

SCHMIDT SHTA Shore Durometer (10 – 90 Shore A)

Indentor: Cone 35°, Ø 1.25 mm

Depth of indentation: 0 – 2.5 mm

Typical applications: Soft rubber, elastomers, natural rubber, soft PVC, leather, etc.

Accuracy: ± 1 hardness unit

Application range: 10 – 90 Shore A Units

Standard: DIN 53505, ISO 48-4, ISO 868, ASTM D 2240

Measuring spring force: 0.55 – 8.065 N

Test pressure*: Approx. 12.5 N

Display range: 0 – 100 Shore A units

Scale diameter: 54 mm

Working face: 18 mm Ø

Housing diameter: 24 mm Ø

Weight, net (gross): Approx. 200 g (300 g)

Dimensions: 28 x 58 x 110 mm (LxWxH)
