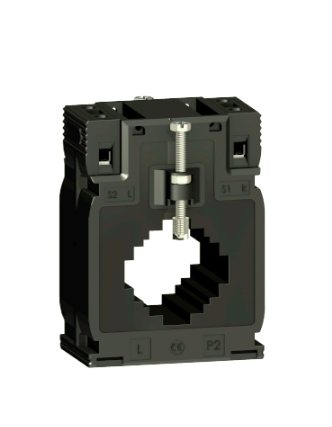

Current transformer type: Tropicalized for busbars and cables
Rated current: 600A
Secondary current: 5A
Normal air thermal current: 36 kA
Rated operating voltage: < 720 V AC (50/60 Hz)
Rated insulation voltage: 3 kV
Safety factor: ≤5
Accuracy class: Maximum power class 0.5: 12 VA, maximum power class 1: 15 VA
Transformation ratio: 600/5
Dynamic withstand current: 2.5 Ith
Mounting support: Busbars, DIN rail, mounting plate
Protection rating: IP20
Dimensions: 70 x 95 x 45 mm (outer), 41 x 41 mm (inner)
Diameter: 32 mm
Weight: 0.449kg.
