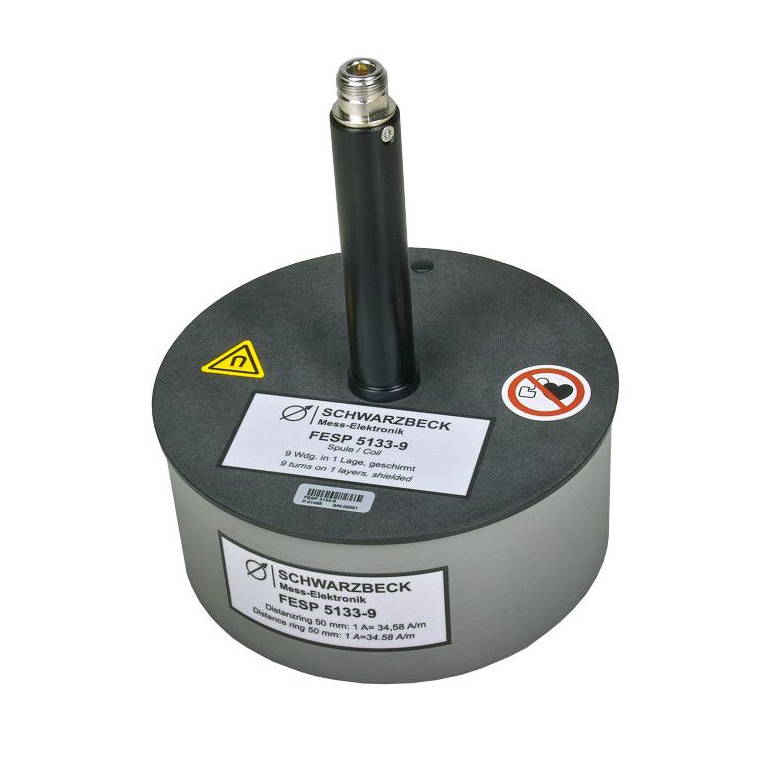

Number of turns: 9
Wire diameter: 1.2 mm Cu
Maximum coil current: 11 A, 5 min.
Nominal coil current: 7 A
Maximum magnetic field strength: 380.4 A/m
Nominal magnetic field strength: 242 A/m
Magnetic field strength, 1 A coil current (with 50 mm distance ring): 34.58 A/m
Required current for 1 A/m (with 50 mm distance ring): 28.9 mA
Flux density with 50 mA at 50 mm distance: 127 dBpT
Magnetic field strength, 50 mA coil current (with 50 mm distance ring): 124.8 dBμA/m
Inner coil diameter: 133 mm
Middle coil diameter: 134.2 mm
Spacing between coil center and measurement plane: 50 mm
Connector: N-jack
Usable frequency range: 10 kHz – 3 MHz
Inductance: ~20 μH
Resistance: 0.1 Ω
Mechanical dimensions: 0.16 m × 0.25 m (0.2 m)
Weight: 0.8 kg
