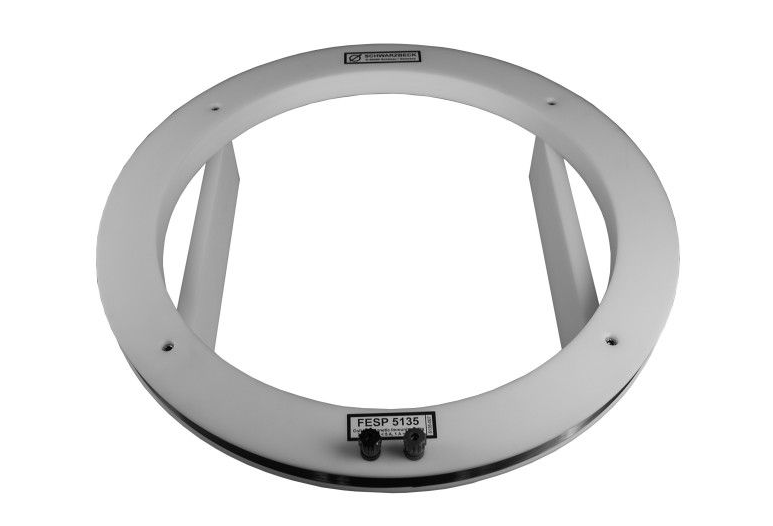

Medium coil diameter: 0.5 m
Number of turns: 20
Turn layers: 1
Mechanical Dimensions: 500 × 500 × 140 mm
Terminals: 4 mm
Usable Frequency Range: 0 – 300 kHz
Inductance: 485 µH
Resistance: 0.8 Ω
Capacitance: 45 pF
Resonance Frequency: ≈1 MHz
Magnetic Fieldstrength at 1 A coil current: 32.016 A/m
Magnetic Fieldstrength at 1 A coil current (dB): 30.1 dB A/m
Continuous Current: < 5 A
Maximum Current: 7 A (5 min)
Max. Magnetic Fieldstrength: 224 A/m (5 min)
Fieldstrength (cont. operation): 160 A/m
Weight: 5.2 kg
Spacer: 100 mm
