Frequency Range: 0.1 – 150 MHz
Max. cont. current: 70 A
Max. current (limited time): 100 A
Max voltage (DC): 1000 V
Max. voltage (AC 50/60 Hz): 700 Vrms
Max. voltage (AC 400 Hz): 300 Vrms
Impedance: (5 µH) || 50 Ω (±10%)
DC-Resistance mains–EuT: < 5 mΩ
Impedance (50 Hz): 4.2 mΩ
Impedance (400 Hz): 13 mΩ

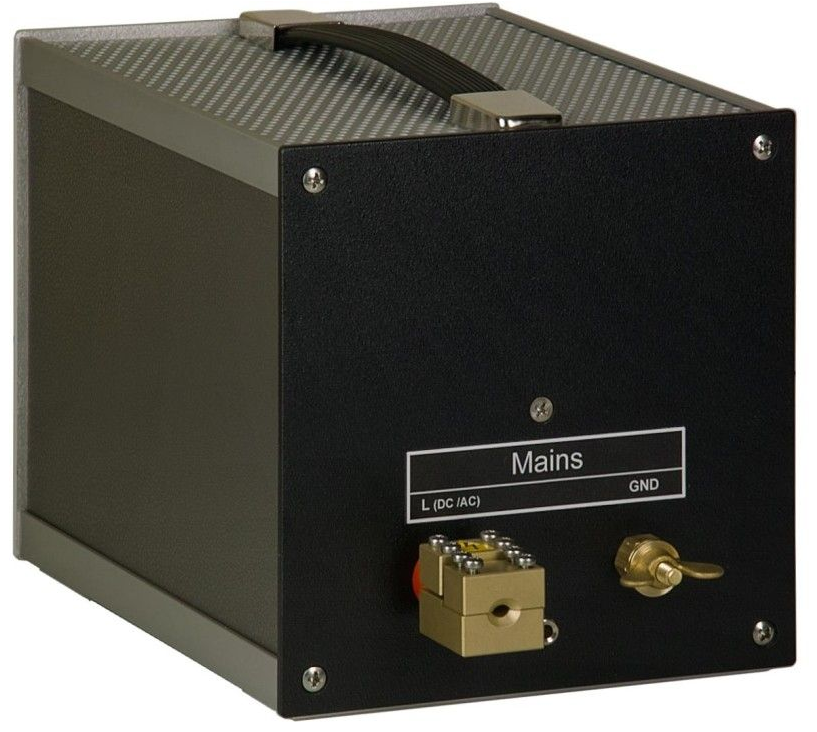

EuT connectors: Schraubklemme siehe Foto / screw terminal, see foto
Measuring port: N-connector
Dimensions (W × H × D): 160 × 165 × 210 mm
Weight: 1.9 kg
