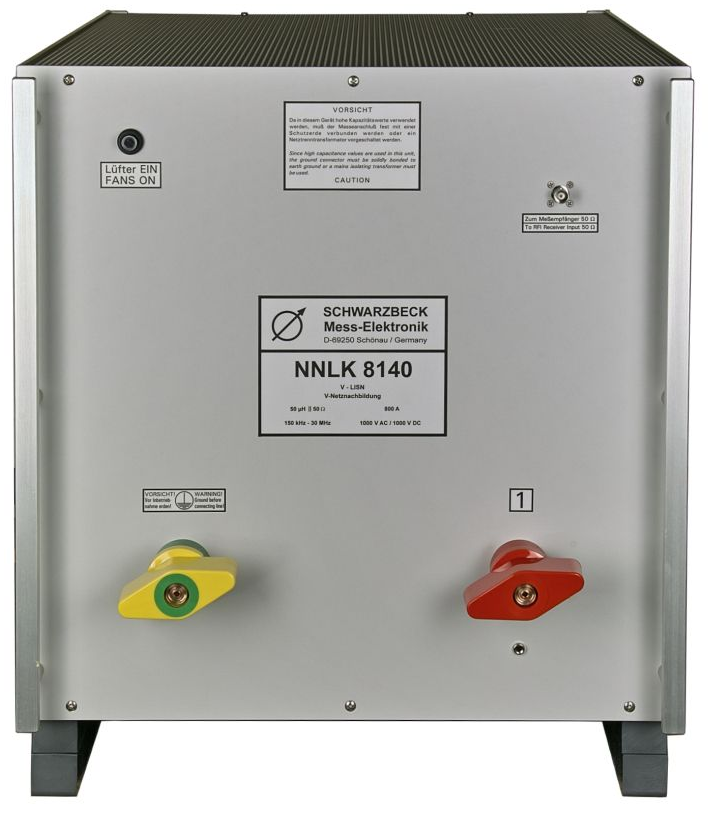

Schwarzbeck NNLK 8140 High current high voltage V-LISN (150 kHz – 30 MHz, 800A, 1000V)

Name: Schwarzbeck NNLK 8140 High current high voltage V-LISN (150 kHz – 30 MHz, 800A, 1000V)
Brand: Schwarzbeck

ModelNNLK 8140

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency range: 150 kHz – 30 MHz

Maximum continuous current: 800 A

Maximum current (limited time): 1000 A

Maximum voltage (DC): 1000 V

Maximum voltage (AC 50/60 Hz): 1000 V

Maximum voltage (AC 400 Hz): 500 V

Impedance: 50 µH || 50 Ω (±20%)

DC resistance (mains–EUT): < 3 mΩ

Impedance (50 Hz): 16 mΩ

EUT connectors: Wing terminals M16×1.5, removable

Dimensions (housing with wing terminals, W × D × H): 445 × 770 × 505 mm

Weight: 46 kg

Datasheet
