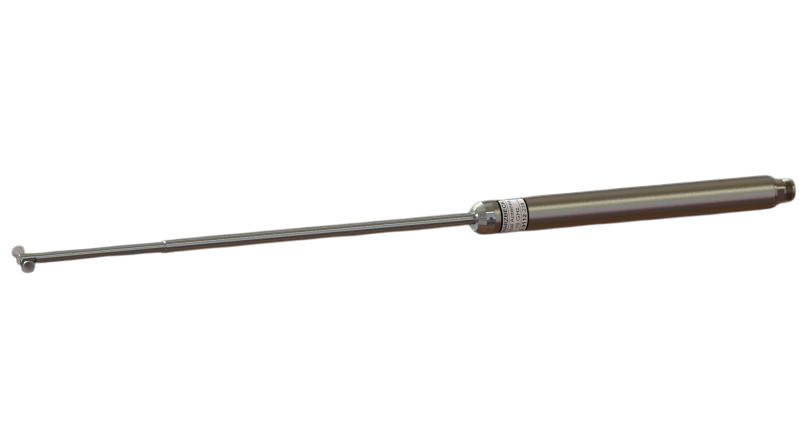

Nominal Frequency range:3 -18 GHz
Useable Frequency range: 1 -18 GHz
Connector: female 50 Ω N
Mounting tube: LH=560mm, d=22 mm
Index Ring:LR=190mm
Element length total:LE = 20 mm
Element diameter:D = 9 mm
Isotropic gain: typ. -4....+3 dBi(3.5 - 18 GHz)
Antenna Factor: 43 ... 53 dB/m
SWR typ.: 1.5-5 (4 - 18 GHz)
Balun (low loss):1:1
Inversion Symmetry: typ. < 0.5 dB(3 - 18 GHz)
Cross Polarisation Rejection: < - 20 dB
Max. Input Power: 10 W
Half-Power Beamwidth (E-plane): 84° - 45°
Weight: 420 g
