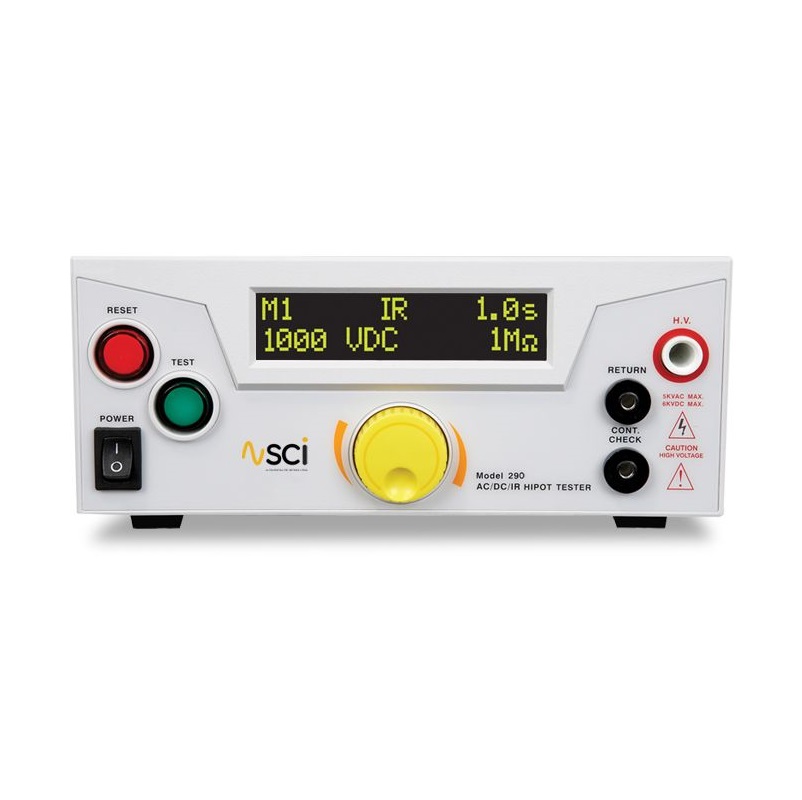

INPUT
- Voltage: 100-120VAC/ 200-240VAC ±10% Auto Range
- Frequency: 50/60 Hz ± 5%
- Fuse: 3.15A/ 250VAC Fast-Blow
DIELECTRIC WITHSTAND TEST MODE
- Output rating: AC 0-5.00 kVAC, 12.00 mA
DC 0-6.00 kVDC, 5.00 mA
- Voltage setting: 0-5.00 kVAC; 0-6.00 kVDC
+Resolution: 0.01 kV
+Accuracy: ± (1.5% of setting + 5V)
- DC Output Ripple: <5% (6 kVDC/5mA at Resistive Load)
- Dwell timer: 0, 0.2-60 sec, (0=continuous), 0.1 sec/step
- Ramp timer: 0.2-180 sec, 0.1 sec/step
- Leakage failure settings
+AC Hi-Limit: 0.10 - 12.00 mA
+Lo-Limit: 0 - 12.00 mA
+DC Hi-Limit: 0.02 - 5.00 mA
+Lo-Limit: 0 - 5.00 mA
+Resolution: 0.01mA
+Accuracy: ±(2% of reading + 0.02mA)
INSULATION RESISTANCE TEST MODE
- Output Voltage
+ Range: 0.1-1.00kVDC
+ Resolution: 0.01kV
+ Accuracy: ± (1.5% of setting + 3V)
- Resistance Display
+ Range: 1-1000MΩ
+ Resolution: 1MΩ
+ Accuracy: 100-499V ± (7% of setting + 2 MΩ)
500-1000V ± (3% of setting + 2 MΩ)
- Hi-Limit
+ Range: 0.1-1000MΩ (0=off)
+ Resolution: 1MΩ
- Lo-Limit
+ Range: 1-1000MΩ
+ Resolution: 1MΩ
- Timer
+ Ramp: 0.1 or 2.0 sec
+ Delay: 0, 0.5 - 999.9 sec, (0=continuous)
GENERAL SPECIFICATIONS
- Continuity feature
+Range: 0.0-1.50Ω
+Resolution: 0.01Ω
+Accuracy: ±(2% of setting + 0.02Ω)
- Memories: 5 (10 optional)
- Remote I/O:
+Input: Test, Reset, Interlock
+Output: Pass, Fail, Test-in-Process
- 3mA AC/DC current limit (optional)
+Range: 0.00-3.00mA
+Resolution: 0.01mA
+Accuracy: ±(2% of setting +0.02mA)
- Safety mark: CE/cTUVus
- Dimensions (WxHxD): 8.5" x 3.5" x 11.9" (215 x 88.1 x 300mm)
- Weight: 12lbs (5.46Kg)
