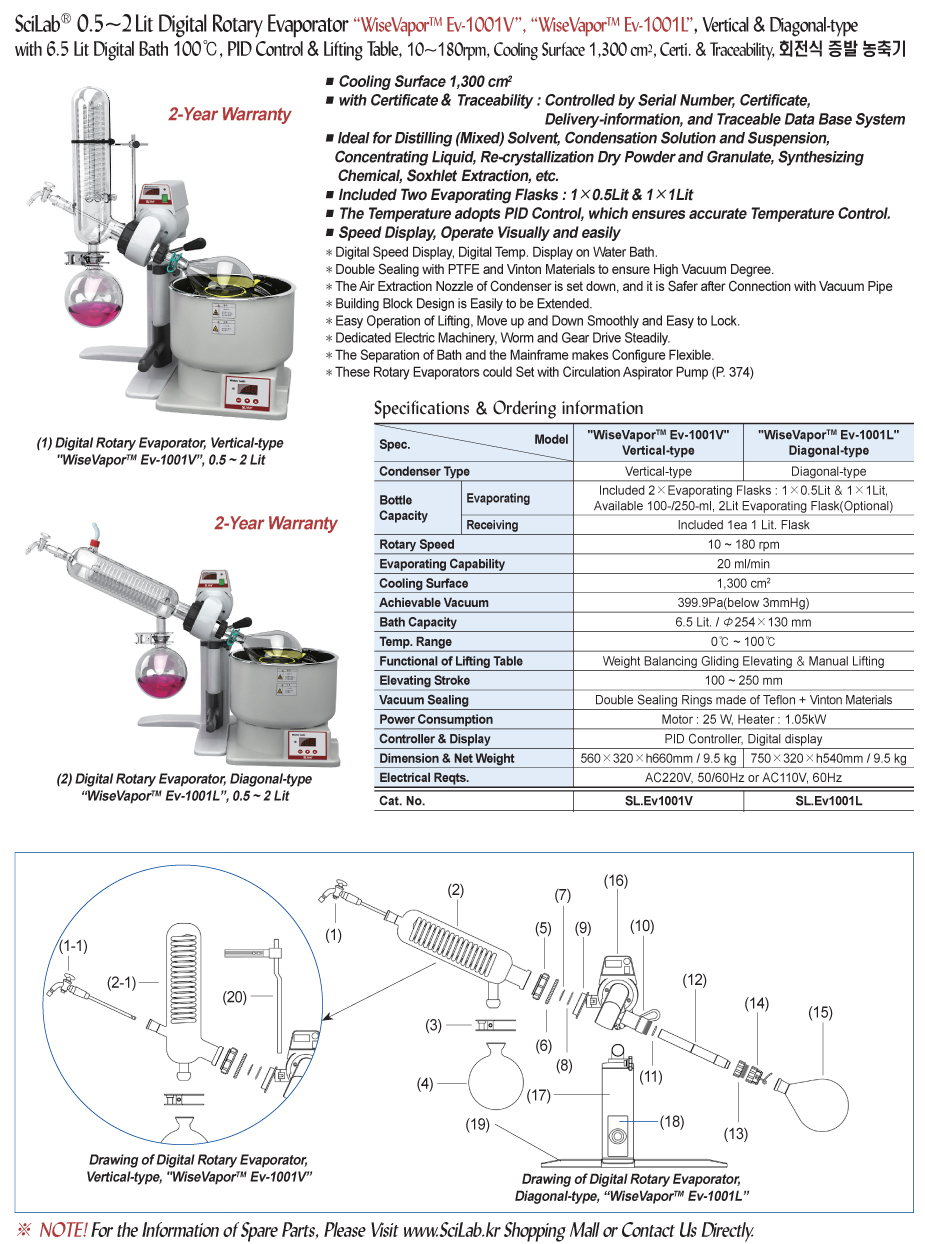

-Condenser Type: Vertical-type
-Bottle Capacity:
Evaporating : Included 2 X Evaporating Flasks: 1 X 0.5 Lits & 1 X 1 Lit.
Available 100-/250-ml, 2Lit Evaporating Flask (Optional)
Receiving: Included 1ea 1 Lit. flask
-Rotation Speed: 10-180rpm
-Evaporating Capability: 20 ml/min
-Cooling Surface: 1,300cm²
-Achievable Vacuum: 399.9Pa(below 3mmHg)
-Bath Capacity: 6.5 Lit./Ø 254 x 130 mm
-Temp. Range: 0°~100°C
-Functional of Lifting Table: Weight Balancing Gliding Elevating & Manual Lifting
-Electric Stroke: 100 ~ 250 mm
-Vacuum Sealing: Double Sealing Rings made of Teflon + Vinton Materials
-Power Consumption: Motor: 25 W, Heater: 1.05kW
-Controller & Display: PID Controller, Digital display
-Dimension & Net Weight (mm): 560 X 320 X h660 mm / 9.5 kg
-Electrical Reqts: AC220V, 50/60Hz
Detail
