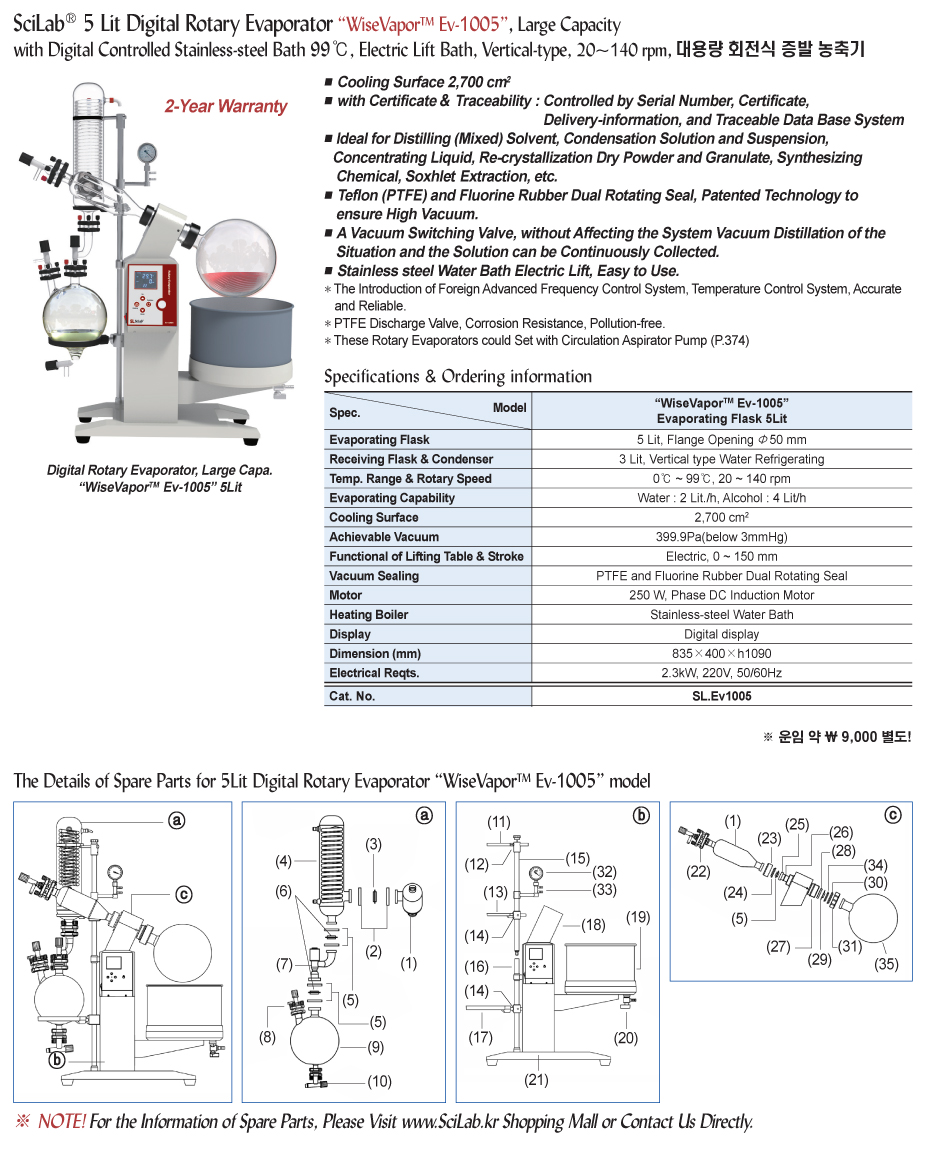

-Evaporating Flask: 5 Lit, Flange Opening Φ50 mm
-Receiving Flask & Condenser: 3 Lit, Vertical type Water Refrigerating
-Temp. Range & Rotary Speed: 0℃ ~ 99℃, 20 ~ 140 rpm
-Evaporating Capability: Water : 3.2 Lit./h, Alcohol : 6.5 Lit/h
-Cooling Surface: Main Condenser: 2,700cm²
-Achievable Vacuum: 399.9Pa(below 3mmHg)
-Functional of Lifting Table & Stroke: Electric, 0 ~ 150 mm
-Vacuum Sealing: PTFE and Fluorine Rubber Dual Rotating Seal
-Motor: 250 W, Phase DC Induction Motor
-Heating Boiler: Stainless steel Water Bath
-Display: Digital display
-Dimension (mm): 835x400xh1090
-Electrical Reqts.: 2.3kW, 220V, 50/60Hz
