SCS 701-M Megohmmeter (Meter Only) (1.49 lb)

Gross Weight*: 1.49 lb

*The weight listed is gross product weight including standard packaging, actual shipment weight may vary.

The following electrical specifications are valid for operating temperatures of 65°F (18°C) to 82°F (28°C), at relative humidity up to 90% for altitudes up to 2000 m, unless otherwise noted. Pollution degree 2, class 3.

Test Function: Continuity

Measurement Range(±5% ±2° of arc.):0 to 10 megohms

Open Circuit Voltage: 10V ± .7V

Internal Resistance: 500 ohms

Test Function: 10V

Measurement Range(±5% ±2° of arc.):10^5 ohms to 10^11 ohms

Open Circuit Voltage: 10V ± .7V

Internal Resistance: 2 ohms

Test Function: 100V

Measurement Range(±5% ±2° of arc.):10^5 ohms to 10^11 ohms

Open Circuit Voltage: 100V ± .7V

Internal Resistance: 2 ohms

Megohmmeter Size: 4.6"(H) x 3.3"(W) x 1.7"(D(11.7 x 8.4 x 4.3 cm)

Weight: 5 lbs. (2.27 Kg) each

Diameter: 2.7” (6.8 cm)

Height: 5.1" (13.0 cm) (w/ handle and pad)

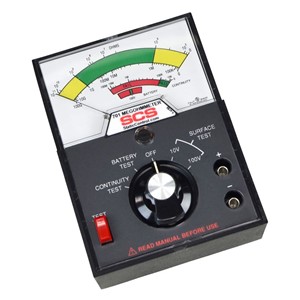

Lightweight, user-friendly Analog Surface Resistance Megohmmeter

Two different test scales and settings for testing both surface-to-ground (Rtg) and surface-to-surface (Rtt) resistance

Color-coded number scales help identify ideal resistance ranges

ETL and CE Listed

NIST Calibrated – Original Calibration Certificate can be Downloaded Here

Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
