SCS 701 Analog Surface Resistance Megohmmeter Kit (13.70 lb)

Gross Weight*: 13.70 lb

*The weight listed is gross product weight including standard packaging, actual shipment weight may vary.

Continuity Measurement Range:0 to 1 x 10^7 ohms

Resistance Measurement Ranges:
1 x 10^5 to 1 x 10^11 ohms @ 10 Volts, complies with ANSI/ESD S4.1

1 x 10^5 to 1 x 10^11 ohms @ 100 Volts, complies with ANSI/ESD S4.1

Measurement Accuracy (@ 18 to 28 ºC, R.H. up to 90%):±5%/ ±2º of arc

Continuity Circuit Internal Resistance:500 ohms

Power Supply:1 - 1.5 V AA cell

1 - 3.6 V AA cell lithium

Display: Analog

Operating Temperature: 41ºF to 85ºF (5ºC to 30ºC)

Environmental Requirements:

Indoor use only at altitudes less than 6500 ft. (2 km)

Maximum relative humidity of 80% up to 85°F (30°C)

Dimensions(meter):4.6" x 3.3" x 1.8"(117 x 84 x 46 mm)

Dimensions (electrode):2.5" (64 mm) diameter x 4.7" (119 mm) height

Weight (meter with batteries):12 oz (340 g)

Weight (electrode):5 lbs (2.27 kg) each

Certifications: CE

Country of Origin: United States of America

Lightweight, user-friendly Analog Surface Resistance Megohmmeter

Two different test scales and settings for testing both surface-to-ground (Rtg) and surface-to-surface (Rtt) resistance

Color-coded number scales help identify ideal resistance ranges

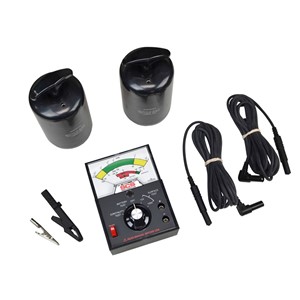

Kit contains:

1 Megohmmeter

2 Test Weights (5 lbs. each)

2 Test Leads (10 ft. each)

1 Insulated Bulldog Clip

1 Alligator Clip

1 Continuity Test Plate

2 Batteries (3.6V and 1.5V)

1 User Guide

1 Molded Carrying Case

NIST Calibrated – Original Calibration Certificate can be Downloaded Here

Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
