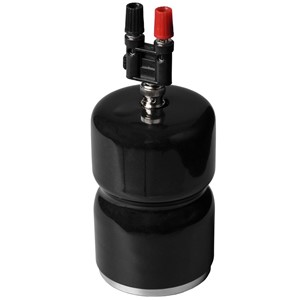

SCS 770007 Concentric Ring Probe (6.70 lb)

Gross Weight: 6.70 lb

*The weight listed is gross product weight including standard packaging, actual shipment weight may vary.

Dimensions (with BNC / banana jack adapter): 2.8" Dia. x 6.5" H (71 mm x 165 mm)

Outer Probe Diameter: 2.5" (63 mm)

Inner Probe Diameter: 1.2" (30 mm)

Weight: 5.8 lbs. (2.6 kg)

Insulation Resistance Between Probes:>1 x 1012 ohms @ 500V

Probe Resistance of Carbon Pads:<100 ohms at low test voltage

Country of Origin: United Kingdom

 Concentric Ring Probe for Surface Resistance Meters

Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material

Spring Loaded, Self-Aligning Center Electrode

Maintains consistent contact between the fixture’s conductive rings and the material under test

Compatible with the Following SCS Surface Resistance Meters

770760 Resistance Pro Meter Kit

701 Analog Surface Resistance Megohmmeter Kit

SRMETER2 Surface Resistance Meter

Made in the United Kingdom

This item is stocked in Chino, CA
