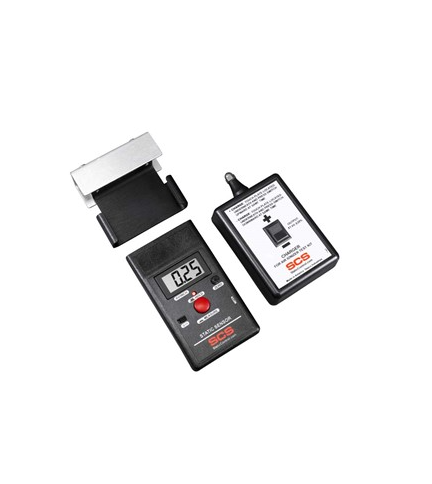

SCS 770717 Air Ionizer Test Kit

Static Sensor

Performance

Measurement Range: 0 to ±19.99 kV / inch

Measurement Accuracy: Better than ±5% of reading, ±2 counts

Measurement Stability: ±10 counts

Front Panel Meter

Voltage Display: 3-1/2 digit LED display

Sampling Rate: 3 readings per second

Features

Ranging System: LED distance indicator; aligned targets indicate 1"

Range: LED distance indicator

Rotary Zero Knob: Sets the zero-reference point

Low Battery Indicator: An LCD icon indicates when the battery is low

Hold Switch: Retains the LCD display reading when depressed

General

Dimensions: 0.9" H x 2.8" W x 4.9"L (24 mm x 70 mm x 126 mm)

Weight: 4.9 oz. (140 g) with battery

Operating Conditions

Temperature: 50 to 86ºF (10 to 30ºC)

Relative Humidity: To 80%, non-condensing

Altitude: To 2000 m

Power Requirements

Power: One (1) 9-volt alkaline battery

Operating Time: Greater than 50 hours, with a new battery at 21ºC continuous

Air Ionizer Test Kit

Conductive plate Assembly: Aluminum bracket, bare aluminum plate and teflon spacers isolate plate from bracket

Voltage Output: 1/10,000 of measured voltage

Conductive plate Area: 2.95" W x 1.18" L (7.5 x 3.0 cm)

Conductive plate Assembly Weight: 2.4 oz. (68 g)

Charger Dimensions: 1.1" H x 2.6" W x 4.5" L (2.8 x 6.6 x 11.4 cm)

Charger Weight: 5 oz. (140 g) with battery

Charger Power Requirements: One 9-volt alkaline battery

Charger Output (using Static Sensor with conductive plate): 1.1 kV minimum for ± voltage
