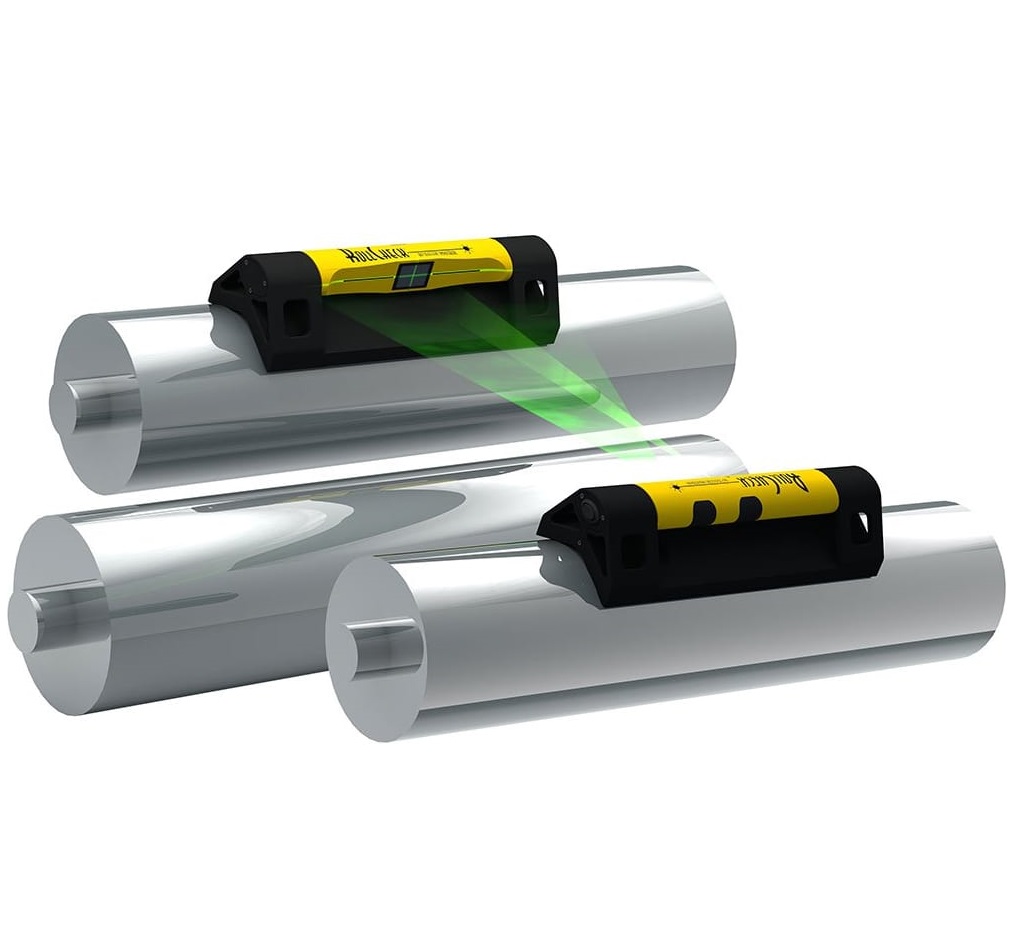

TRANSMITTER SX-5150T
• Operating distance: Max. 10 ft. (3 m)
• Accuracy: < 0.001”/ft. (< 0.03 mm/0.305 m)
• Laser type: 2 ea. 532nm visible green laser lines, 45˚ full angle
• Laser power: < 1mW, Class 2
• Safety precautions: Do not stare into beam
• Laser compliance: CFR parts 1040.10 and 1040.11
• Laser line thickness: 0.017” (0.4318 mm) at 9 ft. (2.8 m)
• Laser calibration: Factory calibrated, check yearly
• Environmental protection: Water resistant, dust proof and impact resistant
• Controls: Laser ON/OFF rocker switch
• Battery type: High power polymer li-Ion rechargeable battery. 3.7v 4000mAh
• Operating time: 16 – 20 hours continuous at 72˚ F (22˚ C)
• Temperature:
Operating: 32˚F (0˚C) to 125˚F (52˚C)
Storage: -4˚F (-20˚C) to 140˚F (60˚C)
• Frame: Rigid aluminum frame, powder-coat paint finish
• Laser housing: Aluminum, powder-coat paint finish
• Mounting diameters: Roll diameters 4” (101mm) up to 8’ (2400mm)
• Mounting straps: Set of 2 attachment straps included:
2 ea. 10” (254 mm) to 45” (1143 mm) adjustable bungee straps for diameters up to 15” (381 mm)
2 ea. 10 ft. (3 m) adjustable straps for diameters up to 38” (965 mm)
• Weight: 4.8 lbs. (2.2 Kg)
• Dimensions: 12” (279mm) W x 4.25” (108mm) D x 3”(76mm) H
REFLECTOR SX-5150R
• Reflector size: 1” (25 mm) x 1.4” (36 mm)
• Frame: Rigid aluminum frame, powder-coat paint finish
• Reflector housing: Aluminum, powder-coat paint finish
• Mounting straps: Set of 2 attachment straps included:
2 ea. 10” (254 mm) to 45” (1143 mm) adjustable bungee straps for diameters up to 15” (381 mm)
2 ea. 10 ft. (3 m) adjustable straps for diameters up to 38” (965 mm)
• Weight: 5.2 lbs. (2.4 Kg)
• Dimensions: 12” (305 mm) W x 4.25” (108 mm) D x 3” (76 mm) H
CARRYING CASE
• Material: Black, high density hard polyethylene
• Dimensions: 20.5” (521 mm) W x 16.75” (425 mm) D x 8.5” (216 mm) H
• Insert: Die cut foam
• Carrying case weight: 14 lbs. (6.4 Kg)
• Total system weight: 24 lbs. (10.9 Kg)
