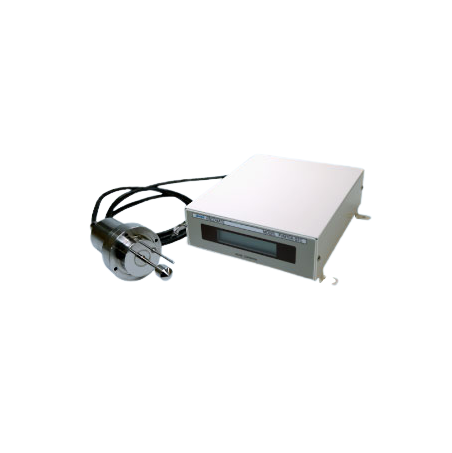

SEKONIC FVM70A-ST Inline Viscometer (L/M/H; 0.5～20000mPa･s, ±2%)

Measuring Range

L-Type *Note 1: 0.5～1000mPa･s

M-Type *Note 1: 10～5000mPa･s

H-Type *Note 1: 500～20000mPa･s

Accuracy: ±2%(Reading) *Note 2

Repeatability: ±1%(Reading) *Note 2

Temperature Range: 0～100℃

Wetted temperature range: 0～70℃

Calibrating method: Calibration with Standard Liquids for Calibrating Viscometers(JIS Z8809-2011)

Viscosity display: 3-digit LCD display (Without decimal point)

Temperature display: 3-digit LCD display (Without decimal point)

System requirements: 10～40°C, 20～80%RH(No condensation)

Analog output: 4～20mA viscosity ×1 temperature × 1

Digital output: RS232C interface output

Power: Input：DC24V 700mA

Probe mounting size: Insertion hole diameter：Φ46、Mounting bolt：Φ60 on the circumference, M4 × 4 pieces

Wetted Materials: Flange: SUS304, the vibrator part: SUS316

Weight and Dimensions

Probe:Φ46・Φ70×L190[mm](including a connecting portion), approximately 1.4kg

Controller: H72xW220xD220[mm] (except the connecting portion and terminal block) approximately 1.7kg

Accessories: Connecting cable (5m) *Note 3, manual
