Measuring
Gas: O2
Range: 0~30%Vol
Resolution: 0.1%Vol
Alarm: 19,23%Vol
Gas: CO
Range: 0~500ppm
Resolution: 1ppm
Alarm: 30,60ppm
Gas: H2S
Range: 0~100ppm
Resolution: 0.1ppm
Alarm: 10,15ppm
Gas: Combustible
Range: 0~100%LEL
Resolution: 0.1%LEL
Alarm: 20, 40%LEL
Self-test: Full function self-test upon activation
Sensors, battery and circuitry - continuous
Detecting Method: Diffusion / Sampling (with Sampling Pump(optional))
Display: LCD Display (back-light)
Alarm: LED flashing, Sound, Vibration
Sensor Technolody: NDIR Sensor
Combustible(LEL): IR or Pellistor
IP: 67
Temperature: -20ºC ~ +50ºC
Humidity: 5~95% RH(Non-condensing)
Battery Rechargeable: Li-ion power supply unit (2000mAh)
Charge Time: 4-6 hours
Battery Life: 60 days continuous
Low Battery Alarm: 20 minutes / 10 minutes / 5 minutes
expired: 5 long beeps/flashes and then Off is displayed
Weigh: t 240g
Size: 61(w) × 114(h) × 43(d)mm
Optional Accessary: MGT-IR Link, Docking Station, SP-Pump 101
Approval:Ex ia IIC T4

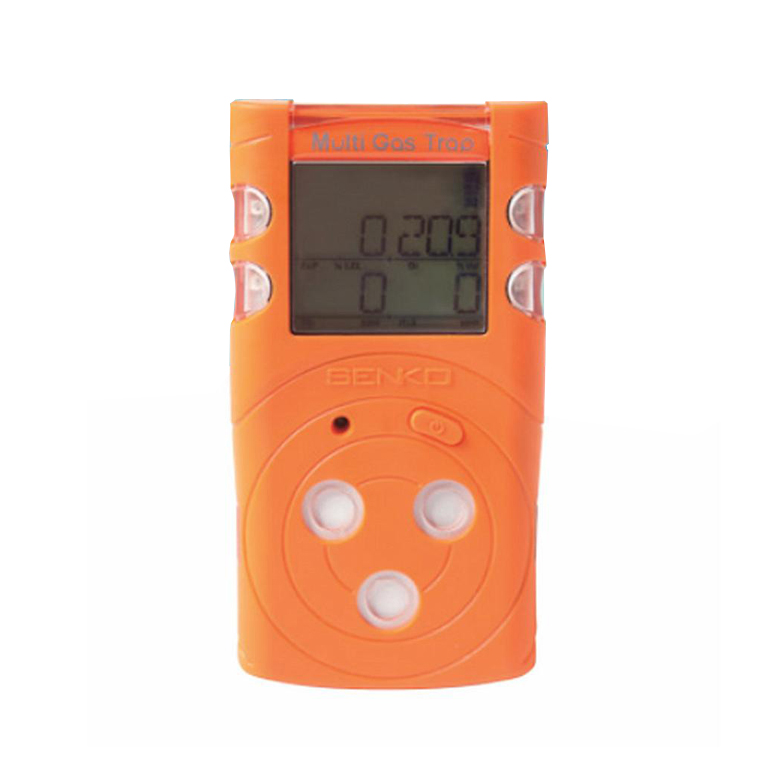

MGT is an united gas detector measuring four(4) major gases, which result the
most of the industrial accidents, to protect workers from the disasters caused
by the Oxygen deficiency, Toxic gas poisoning and gas explosion. It measures
continuously four(4) gases (O2, CO, H2S and Combustible Gas(CH4)) and
displays their concentrations and raises an alarm(visual, vibrating, and audible)
when the risk occurs. It features the dual sensor of CO and H2S.
• Small size & Light weight
• 30 EA of Bump tests/ Events/ Cal.
• Simultaneously detect 4 different gases
• 60 days use by one charge for 4-6 hours (N-type)
• Configuration via exclusive IR Link
• Easy check & calibration via Docking Station
• Intrinsic Safety
