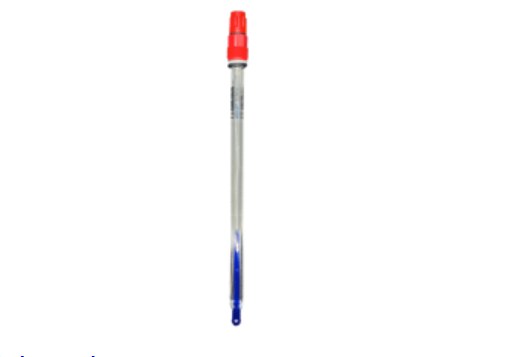

Senseca pH141 pH combined electrode (0....14 pH)

Application range : 0..14 pH

Scope : Scrubber

Process Chemistry

Working temperature : -5..+70 °C

Max. pressure : 6 bar

Diameter : 12 mm

Installation length : 220

Min. immersion depth : 20 mm

Process connection : PG13,5

Temperature sensor : without

Electrical connection : S8

Reference system : Ag/AgCl

Electrolyte in reference : Gel

Diaphragm : 1 x ceramics

Min. conductivity of media : 150 µS/cm

Installation position : 90°(upright)

Resistance, typical : ≤ 300 MΩ@25°C

Zero point : 0+/-20 mV

Slope : 57…59 mV@25°C

reaction time : pH 4..7 < 30 s
