SENSORS
Gas Sensors: All Sensidyne Plus sensors
ToD: Test-On-Demand available for specific toxic sensors.
ELECTRICAL
Design: Microprocessor based with nonvolatile memory. Automatically resumes operation after power failure.
Power: 100-240 VAC, 50/60 Hz or 20-30 VDC.
Battery: Optional battery back-up available.
Outputs: 4-20 mA into 600 ohms; Optional RS-485, Modbus RTU Protocol, HART.

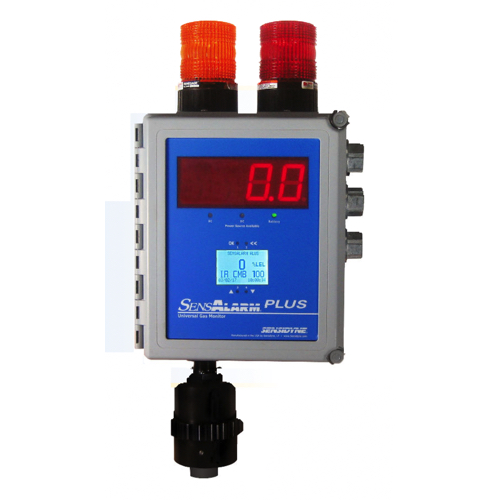

Strobe: Red lens flashing strobe (NEMA 4X) standard with optional dual strobes with red and amber strobe.
Horn: 95 dB piezo horn.
Relays: One (1) SPDT Configurable Fault Relay (Standard Configuration Energized/Failsafe). Three (3) SPDT Configurable Relays.
Contact Ratings: 6 Amps at 120 VAC or 28 VDC Resistive.
ENCLOSURE
Material: Fiberglass.
Description: UL listed, NEMA 4X Rated.
Type: Wall mount with tabs & threaded inserts.
Overall Size: 9.75 (W) by 20 (H) by 6.4 (D) Inches, 24.8 (W) by 50.8 (H) by 16.3 (D) cm.
Weight: 9.75 - 13.75 lbs. (4.4 - 6.3 Kg) including sensor.
Conduit: 3/4 inch EMT connector supplied (side).
Temperature: -4° to 122°F (-20° to 50°C).
Humidity: 0-90 %RH, non-condensing.
Location: Indoor or Outdoor.
Sensor Head: Sensor head enclosure and retaining ring are black anodized aluminum; splash guard, and most other accessories are made of PVC.
DISPLAYS & CONTROLS
LCD Display: Alphanumeric (Value, Gas, & Units).
LED Display: 4 Digit x 1.5 Inch Red LED (Value).
Indicators: Power source LEDs (AC, DC and Battery), Alarm and corresponding to magnetic keypad LEDs.
Security: Password Protected Configuration Menu.
Auto Config.: System automatically senses the presence of optional modules and features.
Reset/silence: External push button switch for acknowledge (Alarm sequence 3A).
Annunciators: Audible (+95db) & Visual single strobe with optional second strobe
