Oxygen Range: 0 to 25% O₂
Operating Principle: 2-Electrode Cell
Output Signal: 4-20mA
Response Time: < 10 Sec
Repeatability: < ±1% of Measuring Signal
Long-Term Output Drift: < ±2% of Signal per Month
Temperature Range: -20°C to 50°C (-4°F to 122°F)
Temperature Co-Efficient: < ±2% of Signal per °C
Humidity Range: 15% to 90% RH, Non-Condensing
Pressure Range: 1 atm ±10%
Pressure Co-Efficient: < ±0.003% of Signal per mBar
Expected Operating Time: 18 Months in Air
Power Supply: 24V d.c. ±15%
Housing Material: Aluminum
Housing Weight: Approx. 1.1lb (500g)
Dimensions: Length: 3.55″ (90mm)
Width: 3.35″ (85mm)
Height: 2.56″ (65mm)

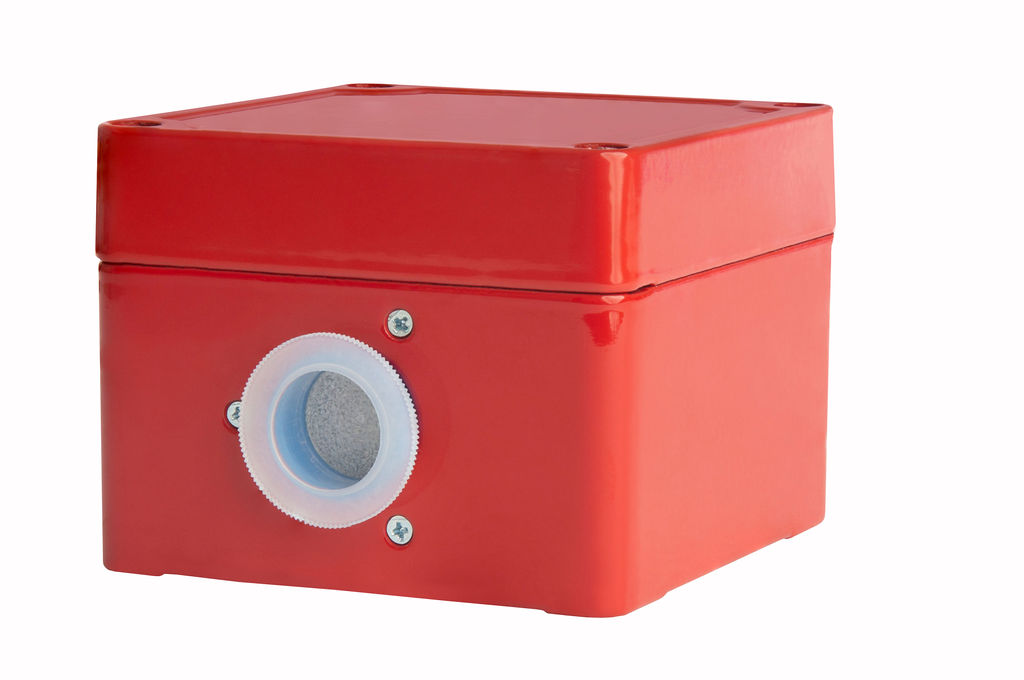

SensoScientific’s 4-20mA Universal O₂ sensor is the leading device to monitor oxygen emissions. With a range of 0 to 25% O₂, this sensor measures and records O₂ readings then uses your existing Wi-Fi network to send collected data to the SensoScientific Cloud. This allows for real-time data access and immediate alert notifications sent via SMS, text message, voice, pager, cell phone, fax, email, and more. The SensoScientific Cloud allows you to access comprehensive reporting, view real-time data, print A2LA Accredited calibration certificates, and more. All data is time-stamped and cannot be altered according to FDA 21 CFR Part 11 requirements.
● Range: 0% to 25% O₂ ● Calibration Certificate Included ● SensoScientific Universal Sensor Compatibility
● Aluminum Housing ● Operating Range: -20°C to 45°C ● IP65-Classified Housing
● 4-20mA Output ● Suitable for Wall Mounting ● Lightweight Design
