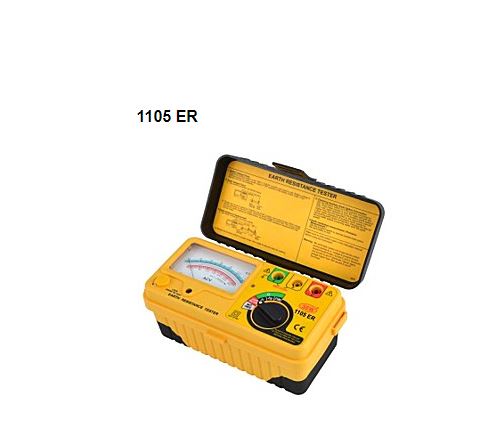

SEW 1105 ER Wire Earth Resistance Tester

Name: SEW 1105 ER Wire Earth Resistance Tester
Brand: SEW

In Stock: 3 Unit

ManufacturerSEW(View more products from this manufacturer)

Model1105 ER

OriginTaiwan

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measuring ranges Earth resistance

0-12Ω / 0-120Ω / 0-1200Ω

Earth voltage 0-30 Vac (40-500Hz)

Accuracy Earth resistance ±3% of full scale

Earth voltage ±2.5% of full scale

Measuring system Earth resistance by constant current

inverter 820 Hz, 2mA approx.

Open circuit

indication LED will be unlit

Dimensions 175(L) × 85(W) × 75(D)mm

Weight

(battery included) Approx. 600g

Power source 1.5V (AA) × 8

Safety standards EN 61010-1 CAT IV 30V

EN 61326-1

Accessories

Instruction manual

Test leads (red-15m, yellow -10m,

green-5m)

Auxiliary earth spikes

Simplified measurement probe

Shoulder belt Batteries

FEATURES

● Capable of measuring earth resistance and earth voltage.
● 2mA measuring current permits the testing of earth
   resistance without tripping earth leakage current
   breakers in the circuit under test.
● In addition to facilitating for precision measurement,
   test leads for simplified two-wire measuring system
   also are supplied as standard accessories.
● Battery operated.
● Battery life indicator.
● Calibration performed with supplied test leads.

SPECIFICATIONS

Measuring ranges	Earth resistance 0-12Ω / 0-120Ω / 0-1200Ω Earth voltage 0-30 Vac (40-500Hz)
Accuracy	Earth resistance ±3% of full scale Earth voltage ±2.5% of full scale
Measuring system	Earth resistance by constant current inverter 820 Hz, 2mA approx.
Open circuit indication	LED will be unlit
Dimensions	175(L) × 85(W) × 75(D)mm
Weight (battery included)	Approx. 600g
Power source	1.5V (AA) × 8
Safety standards	EN 61010-1 CAT IV 30V EN 61326-1
