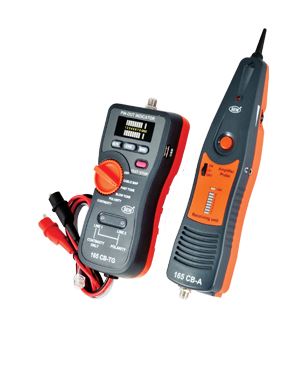

SEW 165 CB Multi-purpose Cable Tester and Cable Tracer

Master unit & Tone Generator (165 CB-TG):
Display: LED Modules / Bi-colored LEDs
Wave form: Square wave
Frequency: 1kHz ± 15%
Over voltage protection: 80V DC
Single tone
Alternating tone: Fast and slow
Amplifier Probe & Receiving unit (165 CB-A):
Frequency detection: 1Hz~12kHz
Receiver distance: < 50cm
Sensitivity control
Flashlight
LED for signal strength
LED module
General:
Operating temp & humidity: 0˚~40˚C, 80% Max.
Storage temp & humidity: -10˚~50˚C, 80% Max.
Power source: 165 CB-A : 9V battery x 1
165 CB-TG : 9V battery x 1
Dimensions: 165 CB-A : 263(L) x 55(W) x 37.3(D)mm
165 CB-TG : 180(L) x 82(W) x 43.8(D)mm
Weight(battery included): 165 CB-A : Approx. 210g
165 CB-TG : Approx. 280g
Safety standard: EN 61326-1 EN 5501, EN 61000-4-2 EN 61000-4-3
