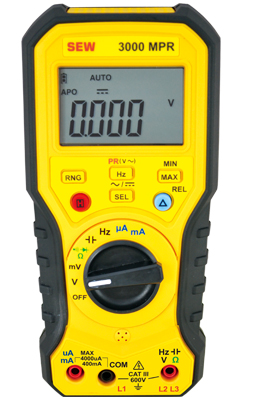

SEW 3000 MPR Digital Multimeter And Phase Rotation Tester

Name: SEW 3000 MPR Digital Multimeter And Phase Rotation Tester
Brand: SEW

ManufacturerSEW(View more products from this manufacturer)

Model3000 MPR

OriginTaiwan

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: SEW
Model: 3000 MPR
Origin: Taiwan
Warranty 12 months
Technical data:DC V: 400mV / 4V / 40V / 400V / 1000V ± (0.5% rdg + 3dgt)
AC V: 400mV / 4V / 40V / 400V / 750V ± (1.0% rdg + 5dgt)
DC mA / µA: 400µA / 4000µA / 40mA / 400mA ± (1.0% rdg + 5dgt)AC mA / µA: 400µA / 4000µA / 40mA / 400mA
Ω: 40Ω / 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ ± (1.2% rdg + 3dgt), 40MΩ ± (2.0% rdg + 4dgt), 200MΩ ± (2.3% rdg + 4dgt)Capacitance: 4nF / 40nF / 400nF / 4µF / 40µF / 400µF / 4mF / 40mF ± (3.0% rdg + 10dgt)
Diode: 2v ± (1.5% rdg + 3dgt)
Frequency: 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz ± (0.5% rdg + 2dgt)Check the phase order of 3-phase power sources: 80 ~ 750VAC (40 ~ 80Hz)
Dimensions: 188mm (L) x 90mm (W) x 54mm (D)Weight: 346g
Source: 1.5V (AAA) battery x 2

Datasheet
