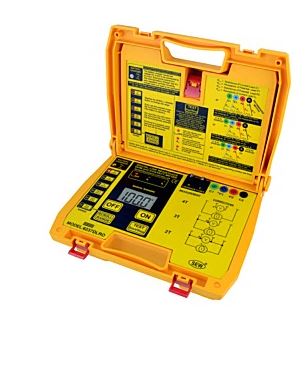

SEW 6237 DLRO Low Resistance Ohm Meter (0-200Ω, 1A)

Low resistance ranges / resolution / Accuracy

0-2.000mΩ / 1μΩ/ ±(5%rdg+5dgt)

0-20.00mΩ / 10μΩ/ ±(4%rdg+4dgt)

0-200.0mΩ / 100μΩ/ ±(4%rdg+4dgt)

0-2.000Ω / 1mΩ/ ±(3%rdg+4dgt)

0-20.00Ω / 10mΩ/ ±(2%rdg+4dgt)

0-200.0Ω / 100mΩ /±(2%rdg+4dgt)

Test current (dc)

2.000mΩ to 200.0mΩ : 1A±3%

200.0mΩ to 20.0Ω : 100mA±2%

200.0Ω : 10mA±1.5%

Maximum output

Voltage (C1~C2) 10V

Dimensions 330(L) × 260(W) × 160(D)mm

Weight (battery included) Approx. 3200g

Power source Rechargeable battery

Safety standard EN 61010-1 ;EN 61326-1
