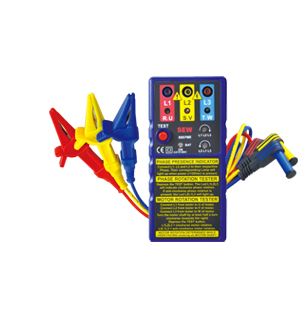

SEW 888PMR Phase Sequence Indicator (Contact Type)

Name: SEW 888PMR Phase Sequence Indicator (Contact Type)
Brand: SEW

ManufacturerSEW(View more products from this manufacturer)

Model888PMR

OriginTaiwan

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Phase Presence Nominal Voltage for

Phase Presence Indication (The voltage

required for the neon Lamps L1, L2, L3

to light up).

From To 100Vac 500Vac

Freq 10-400Hz

Determination of Phase Rotation Field

Direction

From To 100Vac 500Vac

Freq 10-400Hz

Determination of Motor Connections

(requires > 1/2 turn of the shaft) From To 100Vac 500Vac

Freq 10-400Hz

Maximum Current Consumption 18mA

Over Voltage CLASS III 500V

Over Load between all terminals 500V

Battery OK goes off when battery voltage < 6.5 Vdc

Dimensions 153(L) × 72(W) × 35(D)mm

Weight (battery included) Approx. 185g

Power source 9V(6F22) × 1

Safety standard EN 61010-1 CAT III 500V

FEATURES

● Indicates phase rotation.
● Indicates phase presence.
● Indicates motor rotation/wiring.
● Indicates battery status.
● Phase rotation and motor rotation indication works from as low as 1Vac.
● Small, rugged enclosure.
● Color coded test leads.
● Phase presence indication from as low as 100 Vac.
● Very low consumption.
● Fused.
● Lightweight, robust and compact.
● Works from 2 Hz to 400 Hz Sine.

SPECIFICATIONS

Phase Presence Nominal Voltage for Phase Presence Indication (The voltage required for the neon Lamps L1, L2, L3 to light up).	From To Freq	100Vac 500Vac 10-400Hz
Determination of Phase Rotation Field Direction	From To Freq	1Vac 500Vac 2-400Hz
Determination of Motor Connections (requires > 1/2 turn of the shaft)	From To Freq	1Vac 500Vac 2-400Hz
Maximum Current Consumption		18mA
Over Voltage CLASS III		500V
Over Load between all terminals		500V
Battery OK goes off when battery voltage		< 6.5 Vdc
Dimensions		153(L) × 72(W) × 35(D)mm
Weight (battery included)		Approx. 185g
Power source		9V(6F22) × 1
Safety standard		EN 61010-1 CAT III 500V
