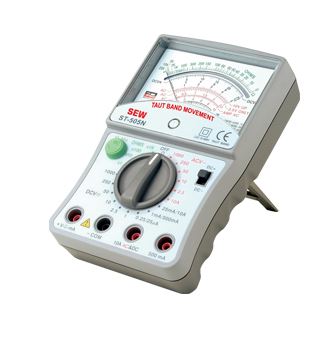

SEW ST-505 N Analogue Multimeter
ManufacturerSEW(View more products from this manufacturer)
ModelST-505 N
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
DC Voltage :
Ranges 0.25 / 1 / 2.5 / 10 /50 / 250 / 1000V
Accuracy ±2% of full scale
Sensitivity 50kΩ / V
AC Voltage :
Ranges 2.5 / 10 / 50 / 250 / 1000V
Accuracy ±3% of full scale
Sensitivity 10kΩ / V
Decibelmeter -20 to 62dB 0dB=1mW / 600Ω
Direct Scale:-20 to +10dB
DC Current :
Ranges 25uA/1mA/25mA/500mA,
10A(on separate input)
Accuracy ±2% of full scale
Sensitivity 250mV
AC Current :
Ranges 10A
Accuracy ±3% of full scale
Resistance :
Ranges
R × 1 0.2 to 20kΩ
R × 10 2 to 200kΩ
R × 100 20 to 2MΩ
R × 1000 200 to 20MΩ
Accuracy ±3% of full scale
GENERAL
Dimensions 160(L) × 100(W) × 45(D)mm
Weight
(battery included) Approx. 380g
Power source 1.5V (AA) × 2
Safety standard EN 61010-1 CAT III 600V
EN 610326-1
Accessories
Instruction manual
Test leads
Batteries
