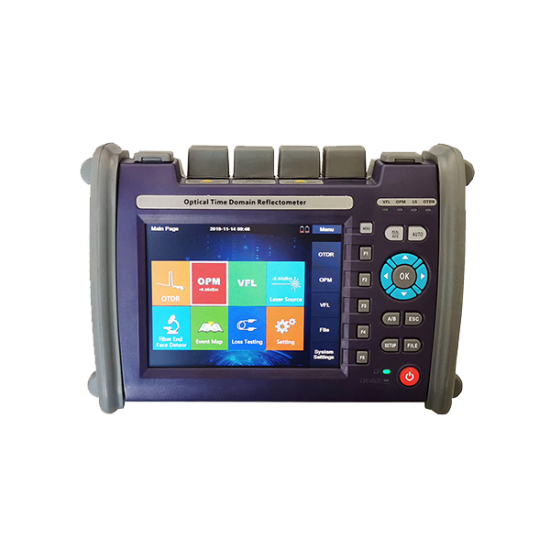

Shinho X2100 Multifunction Handheld SM MM OTDR

Multimode

Wavelength（Max: 4）: 850nm、1300nm

Dynamic Range(dB): 28dB/30dB

Event/ Attenuation Dead Zone: 1.2m/5m

Minimum sampling resolution: 0.05m

Maximum sampling point: 256000

linearity: ≤0.05dB/dB

Loss resolution: 0.001dB

Distance resolution: 0.01m

Distance accuracy: ±(1m+Range×3×10-5+Sampling resolution) （Regardless of the refractive index）

Memory: >100000

Interface: USB（Type A×1，Type B×1）

Battery: Single battery capacity：7.4V/2500mAh，The standard two

Temperature: Environment temperature：-10℃~+50℃；Storage temperature：-20℃~+70℃

Humidity: ≤95%（No condensation）

Size/Weight: 215×155×68mm / 1.1kg（including battery）
