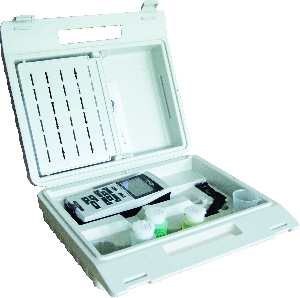

SI ANALYTICS HandyLab 200 Portable meters for analog electrodes

Dimension: 180 x 80 x 55 mm

Weight: 0.4 kg

Measuring range/resolution/accuracy (all values +/-1 digit)

(depending on the kind of IDS sensor):

- Conductivity:

+ 0.0 … 1000 mS/cm +/- 0.5 % from average

+ 0.000 … 1.999 µS/cm, K= 0.01 cm-1 +/- 0,5 % of the mean value

+ 0.00 … 19.99 µS/cm, K= 0.010 cm-1; K=0.100 cm-1 +/- 0,5 % of the mean value

- Specific resistance: 1.000 Ohm cm … 199.9 MOhm cm +/- 0,5 % of the mean value

- Salinity: 0.0 … 70.0 (IOT)

- TDS: 0 … 1999 mg/l, 0 bis 199.9 g/l

- Temperature -5.0 … 105.0 °C +/- 0.1 °C

Cell constant

- Fixed: 0.475 cm-1, 0.100 cm-1, 0.010 cm-1

- Calibratable (1 point): 0.450 to 0.500 cm-1, 0.585 … 0.715 cm-1, 0.800 … 0.880 cm-1, Standard: 0.01 mol/L KCL

- Adjustable: 0.250 … 25.000 cm-1; 0,090 … 0.110 cm-1

Temperature compensation

- Adjustable: Automatic/manual

- Temperature coefficient:

+ nLF none linear function according to EN 27 888 and ultrapure water function

+ Linear compensation 0.000 … 3.000 %/K

+ No compensation

Handling

- AutoRead: Automatic/manual

- Celsius/Fahrenheit: Yes

- Display: LCD B/W Graphic backlit

- Data storage: Manually 200 data sets

- Logger: Manually

- Power supply: 4 x 1.5 V AA or 4 x 1.2 V NiMH rechargeable battery

- Continious operating time: Up to 800 h without/ 100 h with backlight

- Sensor connector: 8 Pole

- Waterproof: IP67 (including battery compartment, USB ports and channels)
