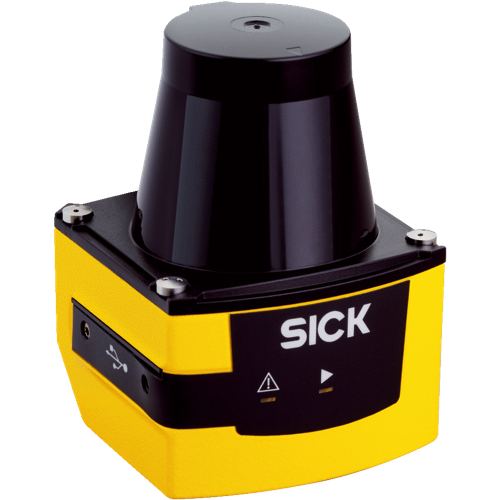

Measurement principle: HDDM
Application: Indoor
Light source: Infrared (850 nm)
Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle: Horizontal 270°
Scanning frequency: 15 Hz
Angular resolution: 0.33°
Working range: 0.05 m ... 25 m (> 90% remission)
Scanning range: At 10% remission : 8m
Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector / 1 x connection “Power”, 12-pin, M12 male connector / 1 x Micro USB female connector, type B
Supply voltage: 10 V DC ... 28 V DC
Power consumption: Typ. 4 W, 16 W with 4 max. loaded digital outputs
Output current: ≤ 100 mA
Housing color: Yellow
Enclosure rating: IP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013)
