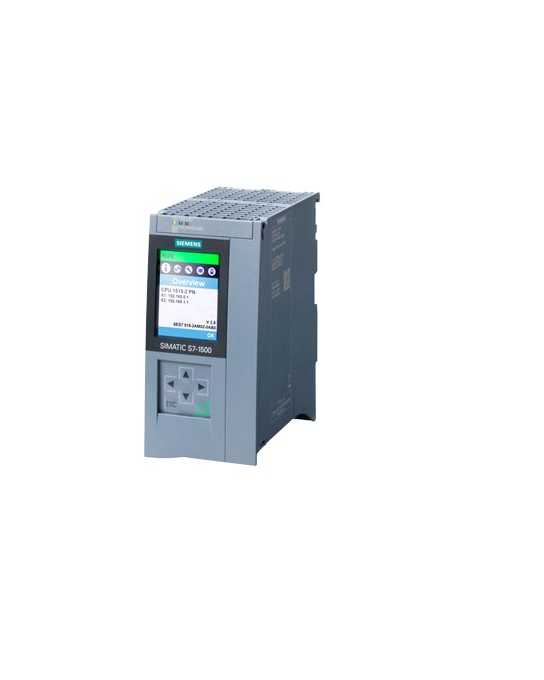

HW functional status: FS01
Firmware version: V2.9
Product function
I&M data: Yes; I&M0 to I&M3
Isochronous mode: Yes; Distributed and central; with minimum OB 6x cycle of 500 µs (distributed) and 1 ms (central)
Engineering with
STEP 7 TIA Portal configurable/integrated from version: V17 (FW V2.9) / V16 (FW V2.8) or higher; with older TIA Portal versions configurable as 6ES7515-2AM01-0AB0
Configuration control
via dataset: Yes
Display
Screen diagonal [cm]: 6.1 cm
Control elements
Number of keys: 8
Mode buttons: 2
Supply voltage
Rated value (DC): 24 V
permissible range, lower limit (DC): 19.2 V
permissible range, upper limit (DC): 28.8 V
Reverse polarity protection: Yes
Mains buffering
Mains/voltage failure stored energy time: 5 ms
Repeat rate, min.: 1/s
Input current
Current consumption (rated value): 0.8 A
Current consumption, max.: 1.1 A
Inrush current, max.: 2.4 A; Rated value
I²t: 0.02 A²·s
Power
Infeed power to the backplane bus: 12 W
Power consumption from the backplane bus (balanced): 6.2 W
Power loss
Power loss, typ.: 6.3 W
Memory
Number of slots for SIMATIC memory card: 1
SIMATIC memory card required: Yes
Work memory
integrated (for program): 500 kbyte
integrated (for data): 3 Mbyte
Load memory
Plug-in (SIMATIC Memory Card), max.: 32 Gbyte
Backup
maintenance-free: Yes
