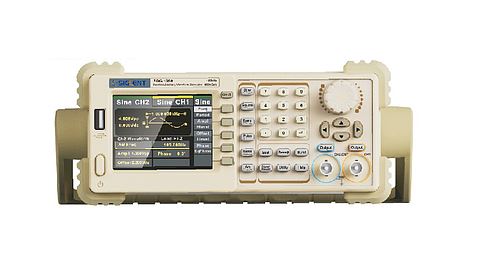

Model | SDG1005 | ||||
Maximum output frequency | 5MHz | ||||
Output channels | 2 | ||||
Sampling rate | 125 MSa/s | ||||
Wave length | 16 kpts | ||||
Frequency resolution | 1 μHz | ||||
Vertical resolution | 14 bits | ||||
Waveform | Sine, Square, Ramp, Pulse, Gaussian white noise, 48 types of built-in arbitrary waveforms | ||||
Sine wave | 1μHz ~ 5MHz | ||||
Square wave | 1μHz ~ 5MHz | ||||
Pulse | 500μHz ~ 5MHz | ||||
Ramp | 1μHz ~ 300KHz | ||||
Gaussian white noise | 5MHz | ||||
Arbitrary wave | 1μHz ~ 5MHz | ||||
Modulation function | AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst | ||||
Other functions | Frequency counter: 100 mHz ~ 200 MHz | ||||
Standard configuration | USB Host & Device | ||||
Optional port | USB-GPIB adapter | ||||
Size | 229mm×105mm×281mm | ||||
Detailed performance parameters and technical indicators please refer to 《SDG1000 serial Datasheet》 | |||||
Standard Accessories:
1. A User Manual
2. A Certification
3. A Guaranty Card
4. A CD (including EasyWave 1.0 computer software system)
5. A Power Cord that fits the standard of destination country
6. A USB Cable
7. A Quick Start
Optional Accessories:
1. BNC Cable
2. GPIB (IEEE 488.2)
