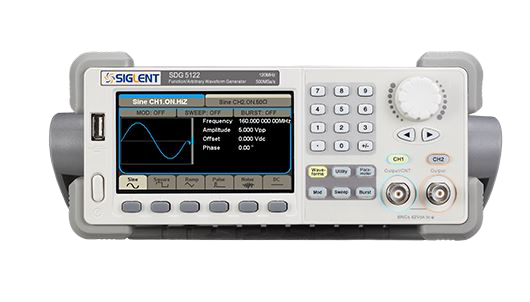

Model | SDG5122 | ||
Maximum output frequency | 120MHz | ||
Output channels | 2 | ||
Sampling rate | 500MSa/s | ||
Wave length | CH1:16Kpts,CH2:512Kpts | ||
Frequency resolution | 1μHz | ||
Vertical resolution | 14bit | ||
Waveform | Sine, Square, Ramp, Pulse, Gaussian white noise, Arb | ||
Modulation function | AM,DSB-AM, FM, PM, FSK, ASK,PWM, Sweep, Burst | ||
Amplitude | CH1/CH2≤40MHz: 1mVpp~10Vpp(50Ω), 2mVpp~20Vpp(high impedance) 40MHz~100MHz: 1mVpp~5Vpp(50Ω), 2mVpp~10Vpp(high impedance) 100MHz~130MHz: 1mVpp~2.5Vpp(50Ω),2mVpp~5Vpp(high impedance) 130MHz~160MHz: 1mVpp~1.5Vpp(50Ω),2mVpp~3Vpp(high impedance) | ||
Frequency counter | Frequency range: 100 mHz ~ 200 MHz | ||
Interface | USB Host, USB Device | ||
Optional interface | LAN,GPIB(IEEE-488) | ||
Dimension | 261mm*104.85mm*343.8mm | ||
Detailed performance parameters and technical indicators please refer to《SDG5000 serial Datasheet》 | |||
Standard Accessories:
1. A User Manual
2. A Certification
3. A Guaranty Card
4. A CD (including EasyWave1.0 computer software system)
5. A Power Cord that fits the standard of destination country
6. A USB Cable
7. A Quick Start
Optional Accessories:
1. BNC Cable
2. GPIB (IEEE 488.2)
