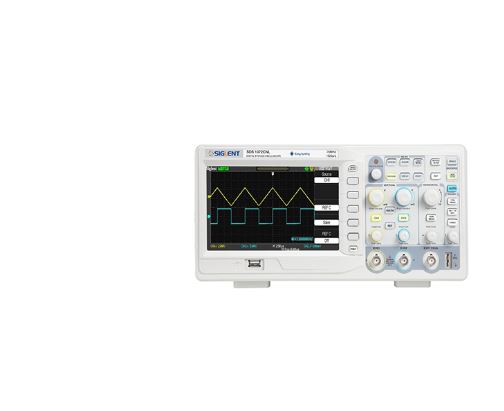

Model | SDS1102CNL | ||
Bandwidth | 100MHz | ||
Channels | 2CH+1EXT | ||
Real time sampling rate | 1GSa/s | ||
Equivalent sampling rate | 50GSa/s | ||
Memory depth | 40kpts | ||
Rise time | < | < 3.5ns | |
Input impedance | 1MΩ‖17pF | ||
Time base range | 2.5ns/div-50s/div | ||
Scan: 100ms-50s/div | |||
Vertical sensitivity | 2mV-10V/div | ||
Vertical resolution | 8bit | ||
Trigger source | CH1, CH2, Ext, Ext/5, AC Line | ||
Trigger types | Edge, Pulse, Video, Slope, Alternative | ||
Math Operation | +, -, ×, ÷, FFT | ||
Digital filter | High pass, Low pass, Band pass, Band Stop | ||
Max input voltage | ±400V(DC+AC Pk-Pk), CAT I, CAT II | ||
Internal storage | 2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms | 2 groups of reference waveform, 20 groups of settings, 20 groups of waveforms | |
External storage | Bitmap save, CSV save, Waveform save, Setting save | ||
Language | English, French, German, Russian, Spanish, Simplified Chinese, TraditionalChinese, Portuguese, Japanese, Korean, Italian, Arabic | ||
Interface | USB Host, USB Device, RS-232, Pass/Fail out | ||
Display | 7 inches(178mm) color TFT(480*234) LCD | ||
Power | AC 100-240V, 45Hz-440Hz, 50VA Max | ||
PC software | Can through the computer remote control oscilloscope, extraction waveform analysis data | ||
Remark | With original source seamless connection, form signal collection, produce integration system | ||
Detailed performance parameters and technical index please refer to《SDS1000CNL Series Datasheet》 | |||
Optional Accessories:
1. BNC Coaxial cable
2. RS-232 Serial line
3. USB-GPIB
4. EasyDsoLib Software setups (free)
5. Oscilloscope portable bag
