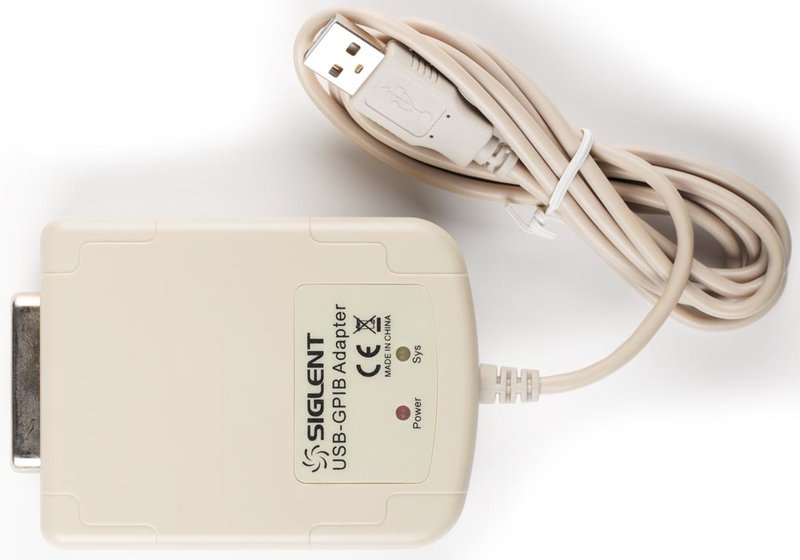

Siglent's USB-GPIB adapter is used with a Siglent instrument which has the USB Host interface but has no GPIB interface (eg SDS1000 series digital oscilloscope) .This GPIB connector end follows the IEEE 488.2 standard and the USB connection terminal follows the USB 2.0 specification. Detailed GPIB commands, please consult the “Remote Command Control Manual.”
Compatible with:
SDM3065X/SDM3055/SDM3045X digital multimeters
SDG6000X/SDG5000/SDG2000X/SDG1000X/SDG1000 arbitrary waveform generators
SSA3000X/SVA1000X spectrum analyzers
SDS1000CFL oscilloscopes
NOTE: Not compatible with the SDS1000X, X-E or SDS2000X families of oscilloscopes.
Features and Benefits:
● This adapter is powered by USB Host interface power supply, no external power supply required
● The adapter allows the Siglent instrument through its USB Host interface using GPIB control
● GPIB interface only support Device model, does not support Controller mode
