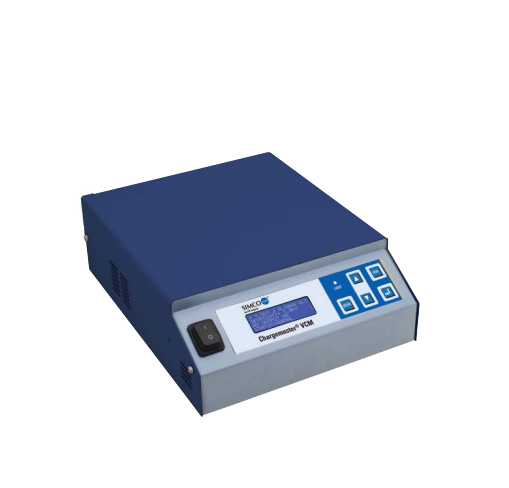

SIMCO Chargemaster VCM Electrostatic Charging Generator

Input Voltage: 85-264 VAC @ 47-63Hz - (self adjusting)

Output Voltage VCM 30: 0-30 kV @ 5mA

VCM 60: 0-60 kV @ 2.5mA

Voltage Rise Time: Under 70 msec

Output Ports: T4

Remote I/O: Analog Signals, 0-20 mA or 4-20 mA or 0-5 VDC or 0-10 VDC via D/sub connector

Remote On/Off: via D/sub connector, and programmable menu

Enclosure: Steel

Dimensions:

VCM 30: 30 kV – 10.5” W x 4.25” H x 13.5” D

VCM 60: 60 kV – 10.5” W x 4.25” H x 15” D

Weight: 16.5 lbs

Ambient Operating Temperature: 32° F to 131° F (0° C to 55° C)

Approval: CE
