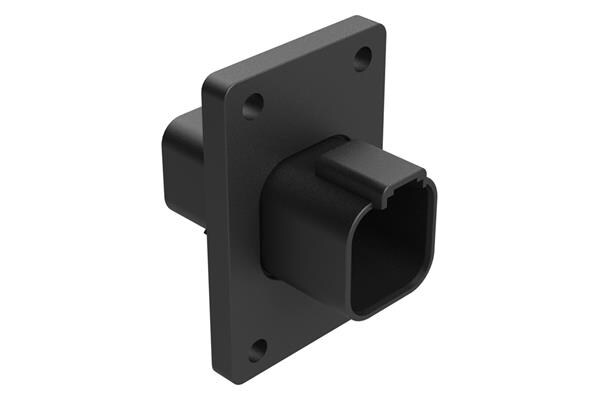

Color: Black
Gender: Receptacle (RP - Male)
Insulation: Insulated
Unit Weight: 24.536 g
Contact Type: Pin
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Mounting Flange
Number of Rows: 3 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Ingress Protection: IP67
Mating Part Number: AT06-6Sx
Number of Positions: 6 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
